Align T-rex 450 Pro 3GX build

[Rich23]

Also has anyone got a pic of there 3GX with all the plugs plugged in when using a receiver?

Thanks

Rich

[AlastairC]

Also has anyone got a pic of there 3GX with all the plugs plugged in when using a receiver?

Thanks

Rich

Not got a pic but the 450 pro manual has an image labelled "Method1: Standard receiver connectivity method" in the 3GX section

[Rich23]

Thank you Alastair I have developed "manual blindness". Must of looked through it and missed it twice! I only wanted to know what way round the plugs went in!

A break is needed, off to get some coffee!

Thanks

Rich

[ShaggyRS6]

Thank you Alastair I have developed "manual blindness". Must of looked through it and missed it twice! I only wanted to know what way round the plugs went in!

A break is needed, off to get some coffee!

Thanks

Rich

You must get it going by tonight. Comon Son!!

[AlastairC]

Thank you Alastair I have developed "manual blindness". Must of looked through it and missed it twice! I only wanted to know what way round the plugs went in!

A break is needed, off to get some coffee!

Thanks

Rich

Yea lots of coffee is needed for any build!

[tomcoleman]

Yea lots of coffee is needed for any build!

im hoping rich's friend gets mine up and running / trimmed = cant wait.

[Rich23]

Did you get my PM Tom?

[tomcoleman]

Did you get my PM Tom?

replying now

[Rich23]

Hey

I'm back doing the heli. Anyone got any ideas on where to route the wiring for the ESC? I've put it under the battery tray with the batter connections at the top and just can't get the wires in without running them out side the frame.

Please help

Rich

[tourerjim]

Managed to fit esc & wires under the tray but had to cut a bit of plastic protruding from under the tray just needed squaring off so i could velcro the esc to the tray so theirs a gap between esc & tray to feed the battery strap through.

[Rich23]

Thanks Jim I finally got it all under the try. Found a picture on google images. Only took an hour!

[Spanner]

I'll take some pics in a bit, my phone needs to charge.

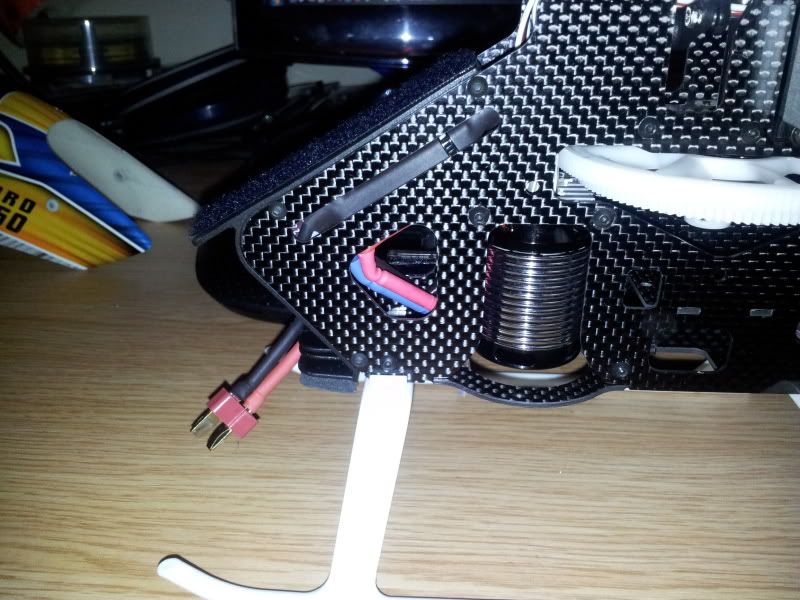

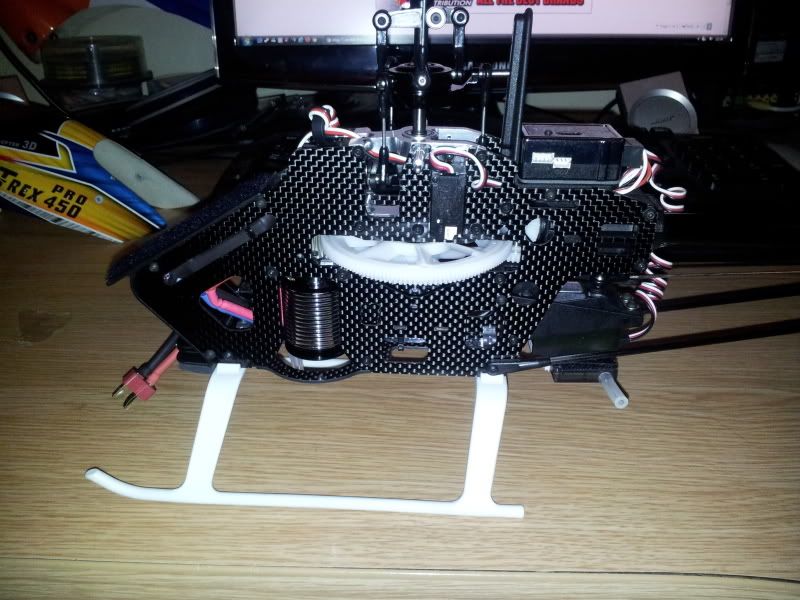

but, Mye ESC is under the battery shelf with the battery connection coming out of the cutout at the front. The motor wires are tye-wrapped to the side of the frame just in front of the motor. I've adjusted the ferrite ring so that it sits on top of the aileron and pitch servo then routed the Rx lead through the top bluck and got it secured between the elevator servo and the top block. The lead then passses under the 3GX unit and plugs in at the back.

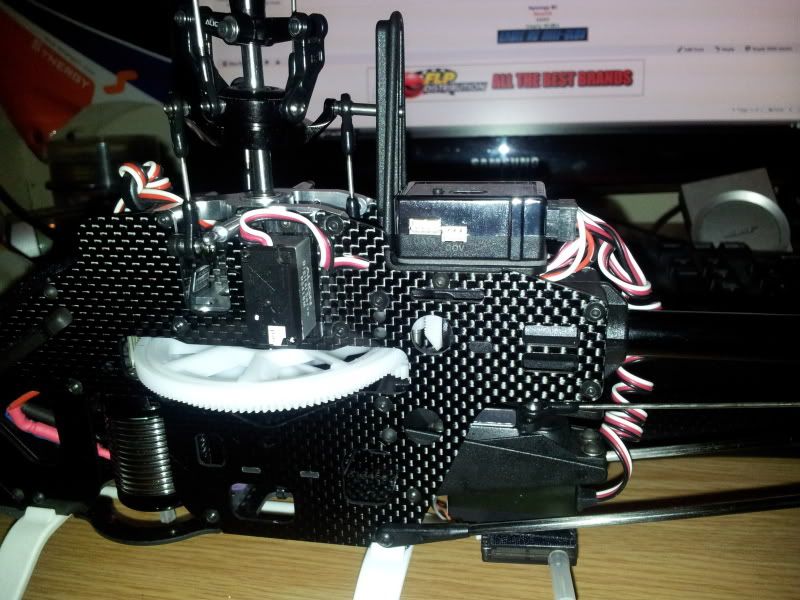

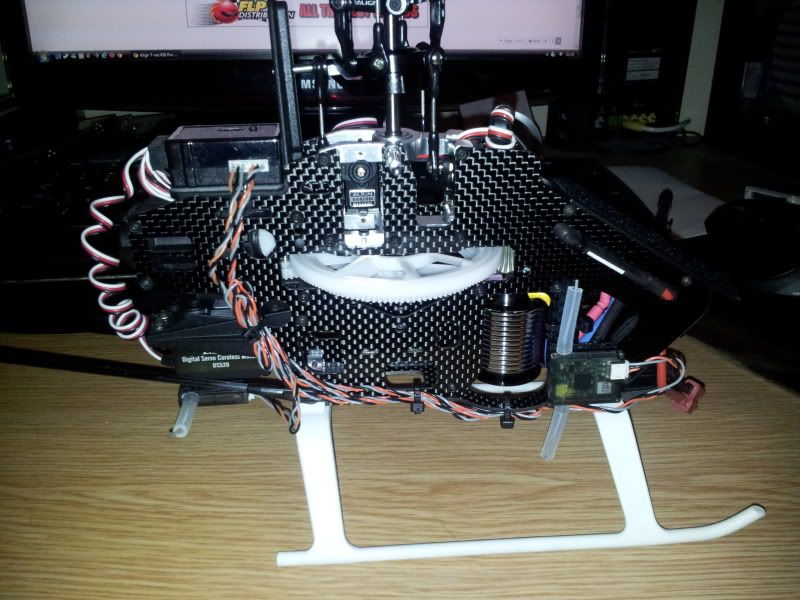

The pitch and aileron servo wires I've routed similarly, but put a couple of dabs of superglue on and tuck them to the bottom of the bottom mainshaft block running just above the maingearthen up and under the 3GX again.

A photo will explain it a lot better!!

[tourerjim]

Looking forward to maiden mine tomorrow

[NoFixedAbode]

Sent from my GT-I9100 using Tapatalk

[Spanner]

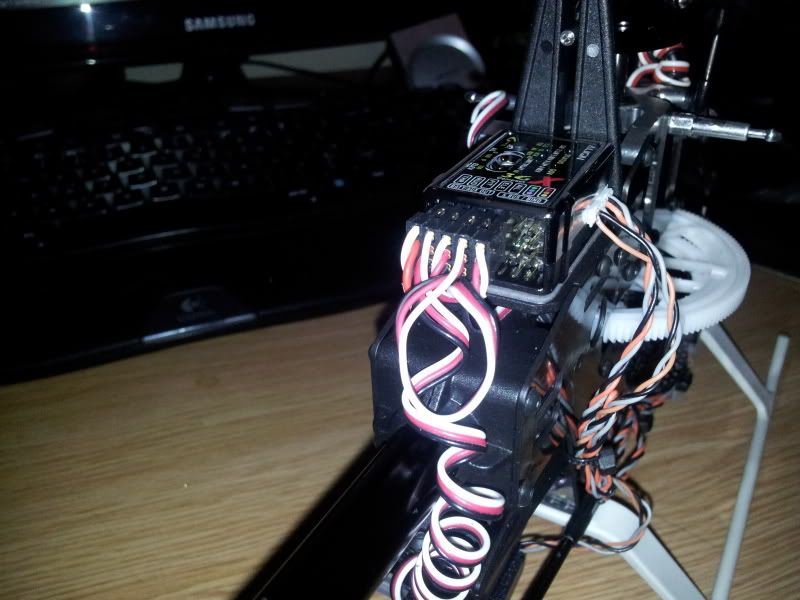

Ignore the satellite wiring, need a shorter lead as the standard one can reach to the moon!!
