Tarot ZYX flybarless

[Mikej]

It needs to be connected to an Rx (that is bound to your Tx if Spektrum (not sure about Futaba etc.)) as well so you would have struggled without a few more bits

[trexsteve700]

ive just fitted and tested one on my 700 and it seems to work ok, setup was a doddle even without the programmer altho that would be handy for tweaks. now all i need is some glow plugs and a fbl head, anyone got any recommendations or a spare i could borrow as not sure fbl is for me yet.

[moyesboy]

I converted mystd head to flybarless on trex 500 and 600n. You only need to drill and tap the washout base to lock it to the main shaft, remove the pins that drive it from the head block so you can turn it 90 degrees, flip the grips and find some longer links to go from swash to grips directly. Its all reversible until you chop the redundant parts of the washout arms off.
http://www.rcheliaddict.co.uk/beastx...00n-500-a.html

[muscleflex]

Hi - I'm sorry I couldn't find the answer to this.
I am about to make my 450 pro FBL and going to install my new Tarot ZYX onto my Align Trex 450 pro with DFC head.
But I do not know what to select for the servo type for my heli.
my servos are standard.
Align DS410m and 520 for the tail I think.
Can anyone please help?

[Stanley Speel]

They are digital servos, and both are 1520 ms pulse rate. if you need to set the frequency as well then the DS410s are 65hz and the DS520 333hz.

[muscleflex]

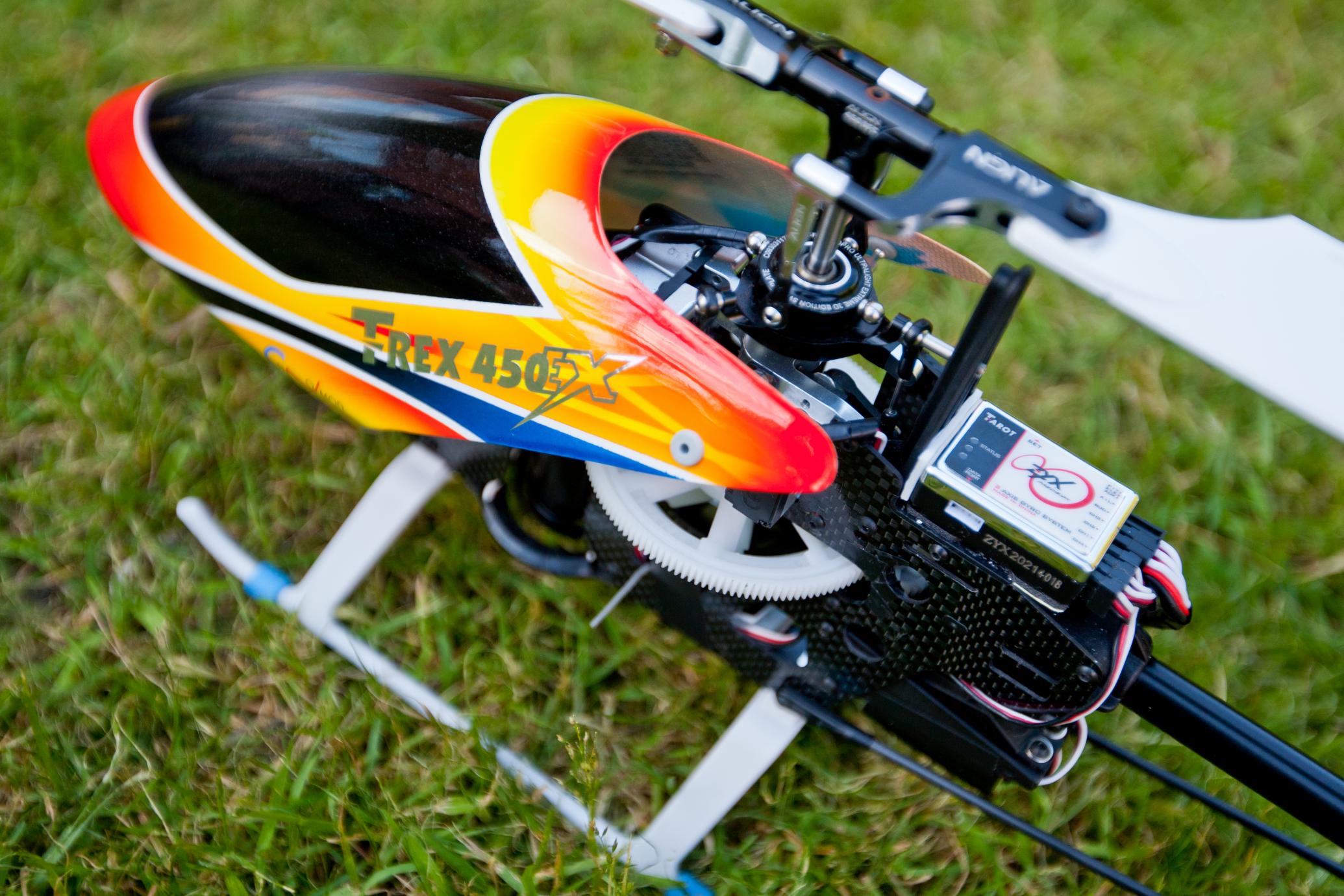

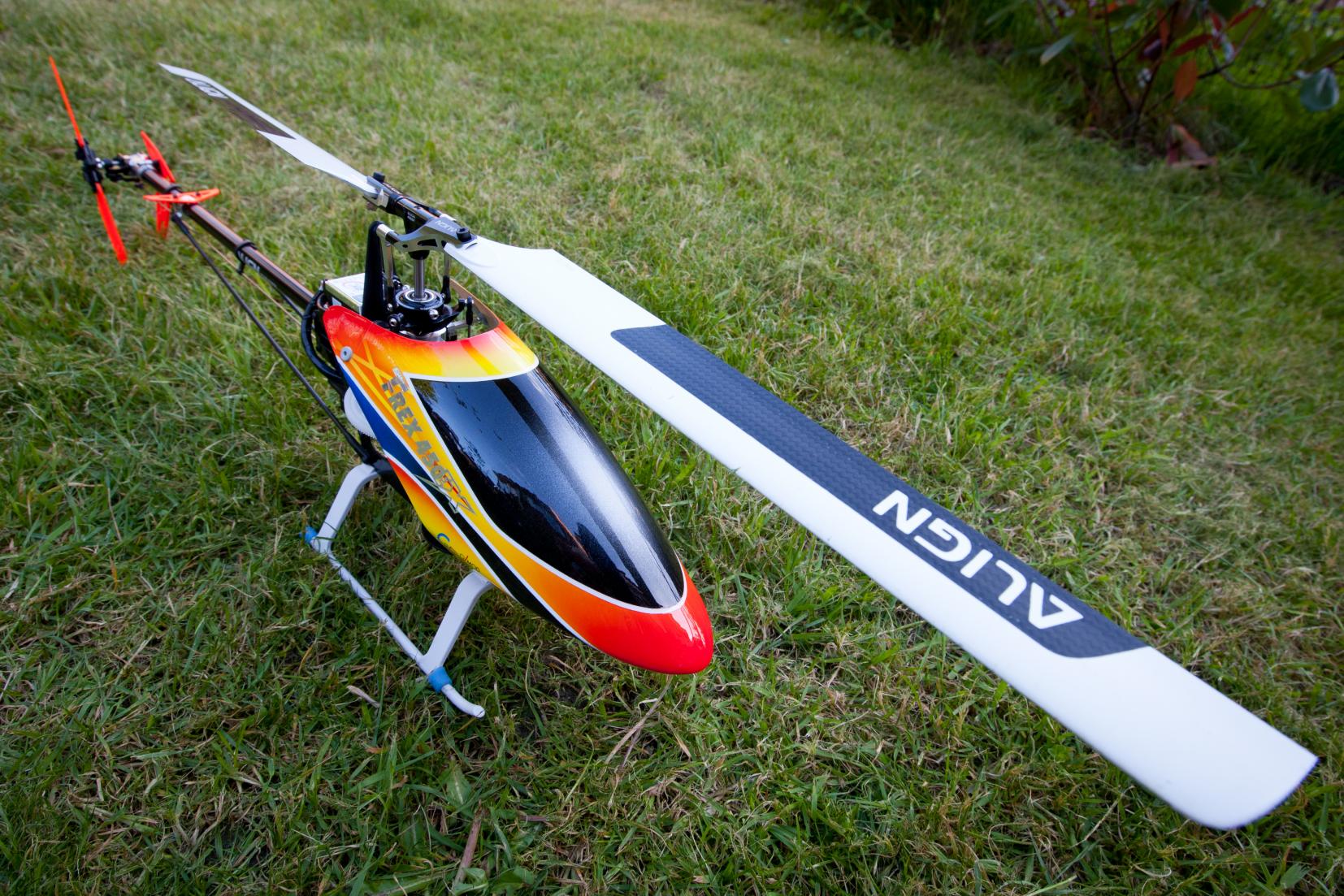

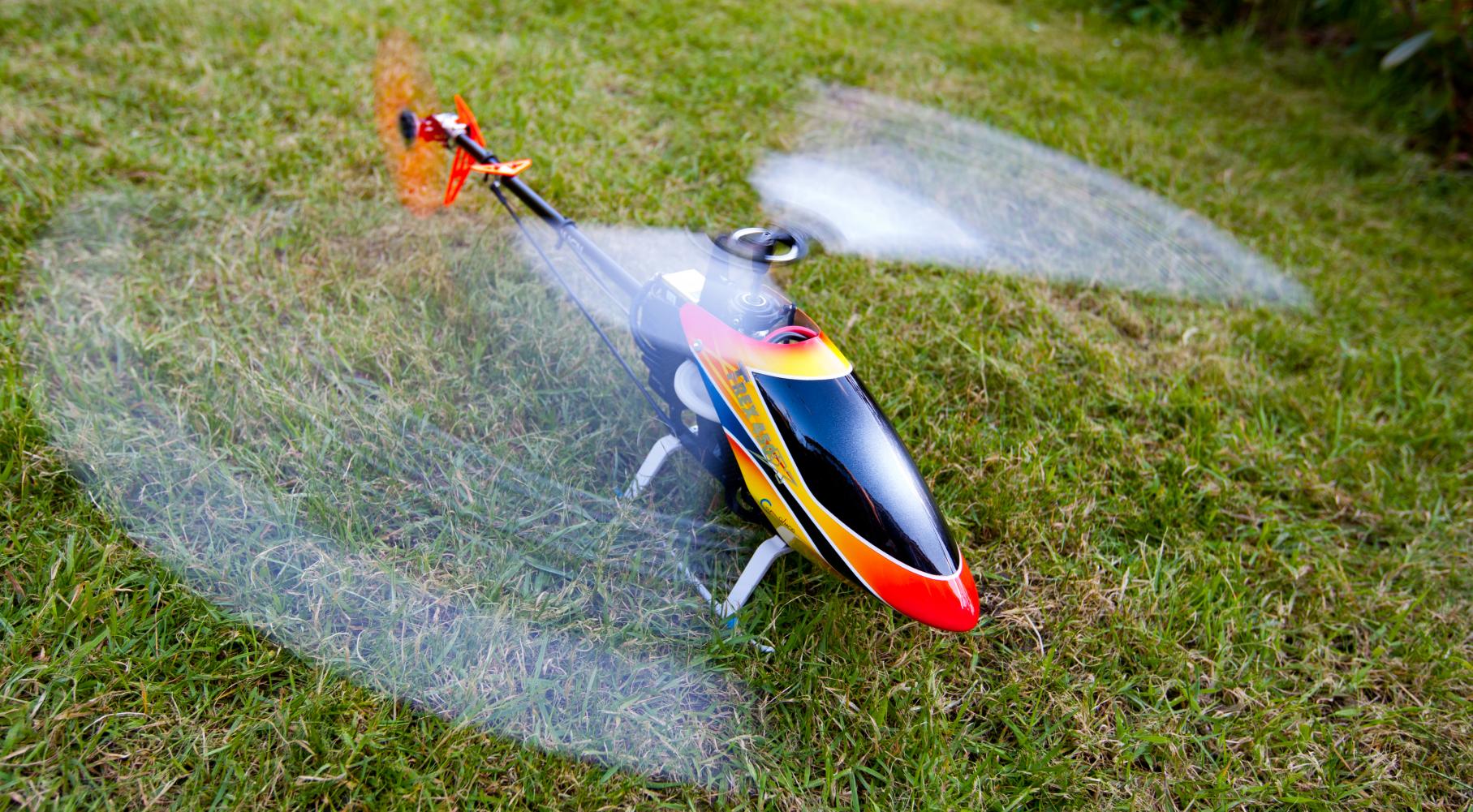

here's my 450 pro with ZYX this afternoon in the garden. need to test it fully tomorrow hopefully if the weather is nice still

[robski]

Looking nice mate, liking the nice neat install.
Hopefully all goes well for you tomorrow.I think you will be pleasantly supprised by it's performance.Loving mine more every time I fly It.Just need to learn how not to crash so often lol.

[trexsteve700]

has anyone ever tried a flybared head with a fbl unit fitted?

[muscleflex]

has anyone ever tried a flybared head with a fbl unit fitted?

hi - apparently you shouldn't use a fbl unit with flybars because the gyro will fight the flybar.

[muscleflex]

Looking nice mate, liking the nice neat install.
Hopefully all goes well for you tomorrow.I think you will be pleasantly supprised by it's performance.Loving mine more every time I fly It.Just need to learn how not to crash so often lol.

thanks - altho it looks windy outside today

[choppertastic]

Any updates from anyone on this. I'm about to get airborn again after mashing my torque tube gears.

Sent from my HTC One X using Tapatalk 2

[muscleflex]

I'm waiting on parts. Had a tip when I was spooling up last Thursday...I ordered link arms which I thought would come with the socket screws I need but guess what - no screws!! I've just found out this morning that the screws are part of the blade grip spares so I have to spend £17 just to get a screw that will get me flying again! It's stupid!

But anyway, I'm having to strip all my servos to redo my set up and move the servo balls closer to center just like what the manual states.

[trexsteve700]

Oh well back to the drawing board again, had a tip over last night and of course the first thing to go wrong was the battery came off so heli chicken danced itself to death. result = total right off

[choppertastic]

I'm trying to tidy up the wiring on mine, it's fitted behind the mainshaft above the tailboom block and I'm just having a total nightmare trying to hide the cables.

How have you fitted/hidden the wires on yours?

[Sekra]

I have 1 on order! I'll let YOU know what i think about it
