  • Spin 8000 killed my 130.

    Ok we'll the title made it sound dramatic.

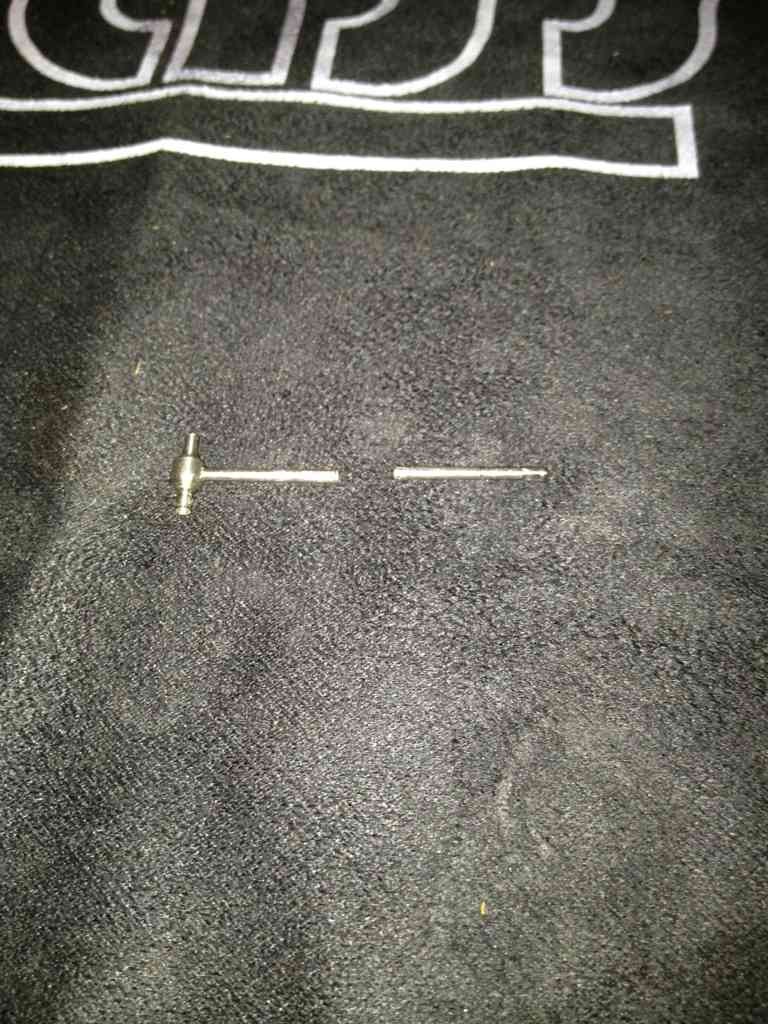

    I fitted a spin 8000 last night, today I get home before my wife and kids so decided to test it out before I get to the indoor club. Spooled up in living room, got it 3 ft up when bang all hell broke loose. The tail shaft ( lynx ) snapped right in the middle Click image for larger version

Name:	ImageUploadedByTapatalk1353692756.783370.jpg
Views:	1
Size:	220.3 KB
ID:	1912058

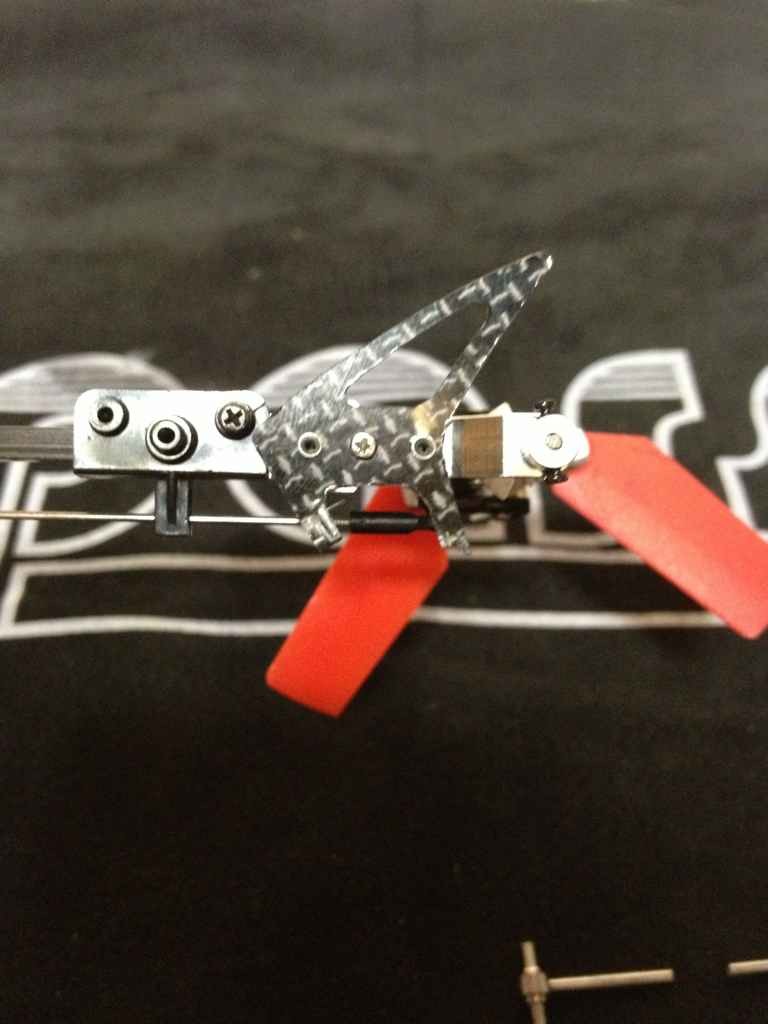

    To make matters worse I pulled full neg to get it down and the lynx tail fin snapped and disappeared into the abyss, my 1 year old son likes to pull himself about the place putting all foreign body's in his mouth. I've looked everywhere with a high powered torch just to be sure and its gone. It's got some nasty carbon splinters hanging of it I'm sure Click image for larger version

Name:	ImageUploadedByTapatalk1353692983.235370.jpg
Views:	1
Size:	68.3 KB
ID:	1912059

    My throttle curve was 90 flat when this happened on a 11t pinion so be warned people. You will need a much lower headspeed with this motor / pinion combo.
    sigpic
    7HV Kosmik 200 cool Neo BL9180 BL9188 pyro 750/56 comp
    6HV ultimate Helijive120 SK540 BLS351 BLS251
    Goblin 500 SK540 jive 100lv
    HD 500 SK540 jive 80 lv
    WARP 360 KOBY 55 SK720 MKS92a MKS95i
    Oxy 3 SK540 minijazz20






  • #2
    Spin 8000 killed my 130.

    I'm still playing with mine, 80% flat seems plenty
    DX8

    Phoenix
    RealFlight 7

    Mcpx BL

    Trex 550 DFC with Vx1n

    Trex 700 DFC Pro Hv with Vx1n

    Zmr250 mini H Quad racer

    Comment


    • #3
      After seeing Timo fly one out of the box at the RCHA fly-in I can't see the need to mod anything.

      sigpic Trex 700 OS91,Vbar,S9254,DS610,NHP
      Trex600LE, OS50,Vbar,LTG6100,DS610X4,NHP
      Raptor 30V1 Maverick Head
      OctoCopter
      Futaba 14SG


      Guinness World Record Pilot 2011/12



      Comment


      • #4
        installed my spin 800 and now when i spool up the heli just spins on the ground the tail servo wont centre untill its spooled up and got some head speed any one had a issue like that ?
        Tbs discovery quad
        Align 700L Dominator
        Gaui x3
        mikado logo 480 Xxtreme





        Comment


        • #5
          Originally posted by liamm =D View Post
          installed my spin 800 and now when i spool up the heli just spins on the ground the tail servo wont centre untill its spooled up and got some head speed any one had a issue like that ?
          The motor is plugged in the right way isn't it?

          I'm not taking the P, honest

          Go on ask me how i know
          DX8

          Phoenix
          RealFlight 7

          Mcpx BL

          Trex 550 DFC with Vx1n

          Trex 700 DFC Pro Hv with Vx1n

          Zmr250 mini H Quad racer

          Comment


          • #6
            I admit there times you think ya need more power but mine has the power to do all the 3D stuff if i dont over pump the throttle so surely wont you find having to lower motor speed your going to be somewhere near back to the stock power.???
            Today's outlook is fine for flying.
            • Spektrum DX18 gen2, Phoenix Sims, Align MR25XP.
            • Blade Nano, mCP X, 130x, Blade 180, Mini T 450se
            • Trex 250dfc Gpro, Trex 500EFL Gpro.
            • Trex 600E Gpro DFC, Trex 600NSP now Gpro, DFC, Redline 56
            • Flickr Through My Pictures.
            • A helicopter is an aircraft that is lifted and propelled by one or more horizontal rotors because Wikipedia said so.

            Comment


            • #7
              Wow! unlucky mate
              Tom
              sigpic Synergy E7SE - Kontronic Helijive 120+ ESC, vBar Neo
              SAB Goblin 630 Competition
              - Castle Edge 120HV, vBar Neo
              Blade 700X - Castle Edge 160HV ESC, Mini vBar
              Logo 550SXv2 - Castle 130LV ESC, vBar Neo
              .... and a Gaui X3
              Spektrum DX8 ; Mikado VBC ; RealFlight 7 & neXt sims
              ... and two EGS'



              Comment


              • #8
                Spin 8000 killed my 130.

                Heathy, lynx have had QC issues with the tail shaft...

                I suggest you contact them and you'll most likely at least get that replaced
                Ridding the world of Helis, one crash at a time....

                sigpic Proud owner of an EGS and a platinum EGS!!!

                Comment


                • #9
                  Lol i bought some lynx gyro padding once let's just say bubblegum was stickier... Wasnt impressed at all so I won't be going anywhere near any lynx stuff.
                  Cheers
                  Stuart

                  Comment


                  • #10
                    Spin 8000 killed my 130.

                    The omicron stuff?

                    It's very similar to zeal tape in my experience... really good at killing vibes but not something I would trust to hold during hard 3D.

                    I believe the idea is that you strap the gyro/FBL unit down over the gel.

                    Same as the align PU gel really too.
                    Ridding the world of Helis, one crash at a time....

                    sigpic Proud owner of an EGS and a platinum EGS!!!

                    Comment


                    • #11
                      lol mines awesome but 80% with a little throttle mixing is ample for anyone sounds like it revved itself to death lol

                      Comment


                      • #12
                        Spin 8000 killed my 130.

                        The rain just eased off for a couple minutes so I couldn't resist and gave the spin its first outing

                        80% flat is plenty imo
                        It was fast enough stock but it goes like hell now

                        I think it's much better than stock and definitely better with the heavy gens aces back nearly touching the servo rod
                        DX8

                        Phoenix
                        RealFlight 7

                        Mcpx BL

                        Trex 550 DFC with Vx1n

                        Trex 700 DFC Pro Hv with Vx1n

                        Zmr250 mini H Quad racer

                        Comment


                        • #13
                          Tried mine today and glad it was up high o has the stock tail blades on and after a couple of pitch pumps bang. Te tail blade flew off along with half of the grip _=\ may order some metal ones so they can cope =p. it certainly seemed more powerful
                          Tbs discovery quad
                          Align 700L Dominator
                          Gaui x3
                          mikado logo 480 Xxtreme





                          Comment


                          • #14
                            Spin 8000 killed my 130.

                            I've just put lynx blade grips on, they seem ok, I'm now thinking maybe it was lucky I broke a ball off the plastic grips while fiddling with the Heli rather than it throwing a blade grip
                            DX8

                            Phoenix
                            RealFlight 7

                            Mcpx BL

                            Trex 550 DFC with Vx1n

                            Trex 700 DFC Pro Hv with Vx1n

                            Zmr250 mini H Quad racer

                            Comment


                            • #15
                              Originally posted by liamm =D View Post
                              Tried mine today and glad it was up high o has the stock tail blades on and after a couple of pitch pumps bang. Te tail blade flew off along with half of the grip _=\ may order some metal ones so they can cope =p. it certainly seemed more powerful
                              I had the same last week on first flight with the spin at 85%,the blade flew out from the grip,cracked at the blade screw hole.Just picked up some lynx weighted grips from Quick to try
                              T- rex 600n V-bar
                              Logo 550sx V-bar
                              Logo 600sx V-bar
                              Logo 600sx V-bar night flyer

                              VBControl, but not the gay white version as i'm simply not gay enough to pull it off!
