  • #16
    [QUOTE=Snaaakeey;772685]Some more build pics! Set up next?[/QUOTE]

    Nearly there. Wait till you fly the beast. I just love mine that it took my attention away from my 600 esp which is running on 12s as well. Flew it in 30mph wind and it felt nothing at all. I can see in the future on my 7hv no 2.:)

    Sent from my GT-I9100 using Tapatalk
    Julius

    Gaui X3 Fubar
    Trex 500 Vbar
    Trex 550 Vbar
    Compass 6HV BD3SX
    Compass 7HV HC3SX
    Compass Chronos HC3SX

    Comment


    • #17
      [QUOTE=Snaaakeey;772685]Some more build pics! Set up next?[/QUOTE]

      Could we have list of equipment fitted please. And where purchased from :)
      Thanks James

      Sent from my HTC Incredible S using Tapatalk
      Trex 250 se, DFC, 3GX.
      Trex 500 esp, FBL, Beastx.
      Trex 600 nsp, DFC, Beastx.
      Compas 7HV, 120HV YEP, SK3 560, HV MKS, VBAR.
      Squall (less 1 wing).
      DSX9.

      Comment


      • #18
        [QUOTE=chucky21022010;767701]It is a very powerful machine. I checked my vbar log and it did not even register any extreme or any bad vibration. I think my issue is with my mechanical setup. I will double check again today and will test it. Savour the build because it will not take long. It is my first 90 size heli so Im quite new to this but my impression on the bird is quite higher compared to my Align models.

        Sent from my GT-I9100 using Tapatalk[/QUOTE]

        Hi there...

        Did you find the cause of your tail wag...? Im mid build on my 7HV....just wandered what your problem was...?

        Thanx
        Ken
        "Yes it is hard to fly"
        "What do you think.....no you carnt have a go"
        "Further than you can see"
        "So your dads got one.....id love to see it"


        Powered by pure luck and a

        Comment


        • #19
          Mks bls 950/990 wings wheels and rotors
          Hobbywing Hv 120 giant cod
          Scorpion 4525 520kv le midlands helicopters
          Gryphon QUASAR Hyper 75V 20A HV Switching BEC GSR-7075 fastlad
          Emcotech sps 120/240 safety switch midlands helicopter
          Spectrum ar7600 + tm1000+ rpm sensor fastlad
          Beastx v3 fastlad
          Tom

          Compass 6hv
          Compass 7hv
          Scorpion 4525 520kv LE
          MKS950/990

          Comment


          • #20
            [QUOTE=kenny.c;773028]Hi there...

            Did you find the cause of your tail wag...? Im mid build on my 7HV....just wandered what your problem was...?

            Thanx
            Ken[/QUOTE]

            I think he had tight ball links on his tail.
            Tom

            Compass 6hv
            Compass 7hv
            Scorpion 4525 520kv LE
            MKS950/990

            Comment


            • #21
              Just for info......my setup is

              4035-560 Scorpion +13T
              Hawk 120hv esc
              Castle Bec-Pro V2
              BLS 451 cyclic
              BLS 251 tail
              Full size Vbar V5.2
              Hyperion phase sensor
              Edge mains and tails

              Really looking fwd to trying this machine.....the quality of the kit is very good and lots of great design ideas.....

              Ken
              Last edited by kenny.c; 12-01-2012, 04:39 PM.
              "Yes it is hard to fly"
              "What do you think.....no you carnt have a go"
              "Further than you can see"
              "So your dads got one.....id love to see it"


              Powered by pure luck and a

              Comment


              • #22
                [QUOTE=kenny.c;773028]Hi there...

                Did you find the cause of your tail wag...? Im mid build on my 7HV....just wandered what your problem was...?

                Thanx
                Ken[/QUOTE]

                Hello Ken,
                The tail wag was caused by tight ball link on the tail rotor. Reamed it and the wag was gone. I thought I checked everything but missed that bit. Make sure your tail assembly is butter smooth and you will have a problem free heli on maiden flight. I just love mine governed at 1700, 1800, 1900 on 13T pinion with a flying time of 6 minutes on a 5000mah 30c flightmax lipo. Flying weight of 5.2kg. I hope it helps.

                Sent from my GT-P1000 using Tapatalk
                Julius

                Gaui X3 Fubar
                Trex 500 Vbar
                Trex 550 Vbar
                Compass 6HV BD3SX
                Compass 7HV HC3SX
                Compass Chronos HC3SX

                Comment


                • #23
                  Hi ken/ chucky

                  All powered up last night and no puffs of smoke out of anything so I'm a happy man,

                  I have gone with a 14 tooth revco so I can govern at 2000-2100. The 6hv is such a ballistic heli I didn't want the 7hv to feel like a slouch. I love the stock compass blades but I may try some 710mm spin blades out later. What motors you running. The compass prototype looks like its coming along nicely. I'm a bit worried the 4525 520 may run a little hot and eat my batteries for breakfast (got a couple of pairs of cheapo zippy 5000mah 50c batteries to get her up I'm the Air) .Got the temperature sensor on the motor and I'll monitor esc and battery temps with a temperature gun ( although you never really know what the correct operating temperature is for each component!)

                  Anyone out there got any timing recommendations for the hobbywing 120 Hv esc? I know 15-22 timing with a pmw of 12khz is the safe zone and sub 15 degs timing can fry the esc but any suggestions would be most welcome.

                  Also what pitch are people running. 13 collective and 7 cyclic?
                  Tom

                  Compass 6hv
                  Compass 7hv
                  Scorpion 4525 520kv LE
                  MKS950/990

                  Comment


                  • #24
                    [QUOTE=Snaaakeey;773268]Hi ken/ chucky

                    All powered up last night and no puffs of smoke out of anything so I'm a happy man,

                    I have gone with a 14 tooth revco so I can govern at 2000-2100. The 6hv is such a ballistic heli I didn't want the 7hv to feel like a slouch. I love the stock compass blades but I may try some 710mm spin blades out later. What motors you running. The compass prototype looks like its coming along nicely. I'm a bit worried the 4525 520 may run a little hot and eat my batteries for breakfast (got a couple of pairs of cheapo zippy 5000mah 50c batteries to get her up I'm the Air) .Got the temperature sensor on the motor and I'll monitor esc and battery temps with a temperature gun ( although you never really know what the correct operating temperature is for each component!)

                    Anyone out there got any timing recommendations for the hobbywing 120 Hv esc? I know 15-22 timing with a pmw of 12khz is the safe zone and sub 15 degs timing can fry the esc but any suggestions would be most welcome.

                    Also what pitch are people running. 13 collective and 7 cyclic?[/QUOTE]

                    That's sounds promising Snaakey. Im running 510 700mx motor so Im a bit conservative on the power. I sport fly so I want to really maximize flight time. I left everything default on the HW settings except for the very soft start which I used. 12 deg collective and as per vbar instructions 8 deg cyclic and 80-100 control loop. If I remember right beast x uses 6deg on J, and get that blue light. I never bothered to measure the 3 helis running on beast x so I dont know exactly how much is my cyclic throw after setup. Vbar was used on 7hv because it is " special ".:)

                    Sent from my GT-I9100 using Tapatalk
                    Julius

                    Gaui X3 Fubar
                    Trex 500 Vbar
                    Trex 550 Vbar
                    Compass 6HV BD3SX
                    Compass 7HV HC3SX
                    Compass Chronos HC3SX

                    Comment


                    • #25
                      I went for a 560kv.....based on the info I could find at the time the Compass motor was going to be the same kv so assumed id be pretty safe with it...(plus I already had it)......It would seem anything from 500-560kv can be used so with any luck it should have plenty of "pop"

                      Thanx
                      Ken
                      "Yes it is hard to fly"
                      "What do you think.....no you carnt have a go"
                      "Further than you can see"
                      "So your dads got one.....id love to see it"


                      Powered by pure luck and a

                      Comment


                      • #26
                        My flying setup.
                        Align 610's
                        BLS 251
                        Mini V Pro 5.2
                        Hyperion Phase Sensor
                        Align 700MX 510
                        13T Governed 1700, 1800, 1900
                        Cc Bec Pro v2
                        Hobbywing 120HV
                        Futaba R6203SB
                        5000mah Flightmax 30c
                        Flying time of 6 minutes but could extend up to 7.5minutes if I really pushed it.

                        Sent from my GT-P1000 using Tapatalk
                        Julius

                        Gaui X3 Fubar
                        Trex 500 Vbar
                        Trex 550 Vbar
                        Compass 6HV BD3SX
                        Compass 7HV HC3SX
                        Compass Chronos HC3SX

                        Comment


                        • #27
                          For Beast X, you should set up for 6 degrees in step J as stated above and then for overall cyclic range you should just make it as high as possible without mechanical binding and let the Beast X decide how much to actually use. Can't remember exactly but on my TRex 700 I probably had about +/-12 degrees cyclic with the Beast X.

                          Comment


                          • #28

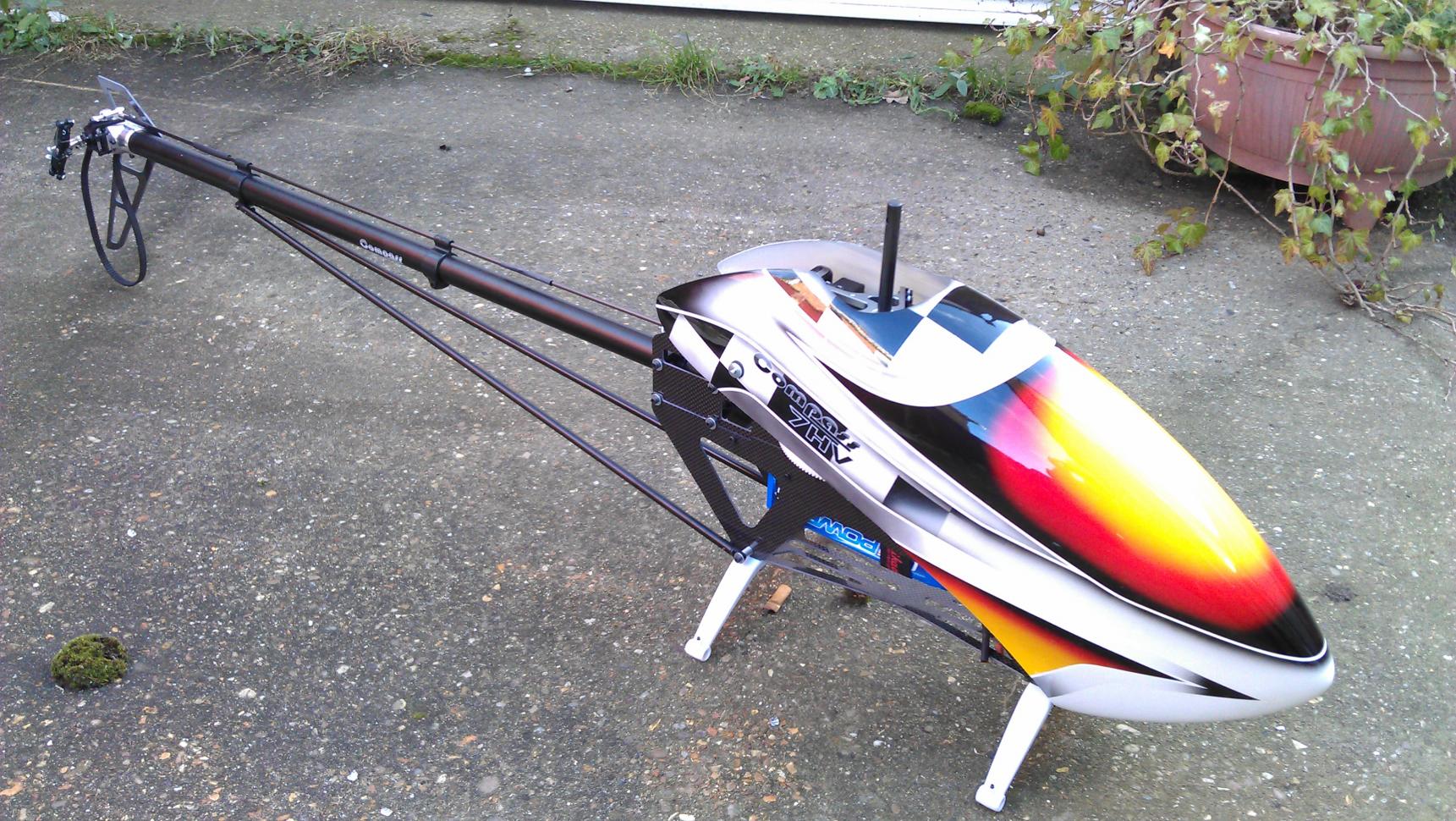

                            Got some build time on my 7HV recently.......it seems to have taken for ever to get the electronics and wiring right but im pretty happy with everything now.....juat done a quick "throw it together" to check C of G....

                            Should be ready for a few setup flights by next weekend......carnt wait

                            Ken

                            [ATTACH=CONFIG]35999[/ATTACH]
                            Attached Files
                            "Yes it is hard to fly"
                            "What do you think.....no you carnt have a go"
                            "Further than you can see"
                            "So your dads got one.....id love to see it"


                            Powered by pure luck and a

                            Comment


                            • #29
                              [QUOTE=kenny.c;778011]Got some build time on my 7HV recently.......it seems to have taken for ever to get the electronics and wiring right but im pretty happy with everything now.....juat done a quick "throw it together" to check C of G....

                              Should be ready for a few setup flights by next weekend......carnt wait

                              Ken

                              [ATTACH=CONFIG]35999[/ATTACH][/QUOTE]
                              almost there Ken...:)


                              Sent from Samsung Galaxy S2
                              Julius

                              Gaui X3 Fubar
                              Trex 500 Vbar
                              Trex 550 Vbar
                              Compass 6HV BD3SX
                              Compass 7HV HC3SX
                              Compass Chronos HC3SX

                              Comment


                              • #30
                                [QUOTE=kenny.c;778011]Got some build time on my 7HV recently.......it seems to have taken for ever to get the electronics and wiring right but im pretty happy with everything now.....juat done a quick "throw it together" to check C of G....

                                Should be ready for a few setup flights by next weekend......carnt wait

                                Ken

                                [ATTACH=CONFIG]35999[/ATTACH][/QUOTE]
                                almost there Ken...:)


                                Sent from Samsung Galaxy S2
                                Julius

                                Gaui X3 Fubar
                                Trex 500 Vbar
                                Trex 550 Vbar
                                Compass 6HV BD3SX
                                Compass 7HV HC3SX
                                Compass Chronos HC3SX

                                Comment
