  • Servo Harness

    Anyone know where I can find one of these harness from, need it for RX lipo to FBL. I'm rubbish at soldiering so have to buy it

    Servo Y Lead – 270mm (JR) « ElectriFlyer
    Paz

    Goblin Black Nitro
    Goblin 380
    Oxy 2
    Vcontrol

    Leicester Heli Flyers Club

  • #2
    Here you go

    https://www.align-trex.co.uk/spektru...spmyhec36.html
    Humble owner of 7 Eddie Gold Stars and Ex - member of Mk Heli Club
    sigpic

    Comment


    • #3
      If you want it to go from the Rx liPo then it's the wrong lead for the job (the Electriflyer one). The whole point of having dual inputs into the FBL is because a single servo 'JR' type plug is only rated for about 4A, so you need two of them. If you use a standard Y lead then all the current still has to go through a single servo type plug before splitting into two, so you don't gain anything.
      You need a special Y lead with a higher rated connector (Deans, XT-60, EC3 etc). You really want heavy duty 20AWG wires too.

      The one Waveydavey pointed to is ideal.
      Last edited by Grumpy; 04-05-2016, 02:27 PM.
      Goblin Kraken, SoXos Strike 7, XLPower Specter, Goblin Black Thunder T, Goblin 700 Speed, Goblin 770 Comp Carbon, Trex 700X, Kasama Dune, Henseleit TDR

      Comment


      • #4
        Cheers mate, your right

        My RX lipo has a xt60 connector on it so could do with something like WaveyDavey suggested but a different lipo connector. Might just have to soldier my own as I have all the stuff I need, if I can't find one?
        Paz

        Goblin Black Nitro
        Goblin 380
        Oxy 2
        Vcontrol

        Leicester Heli Flyers Club

        Comment


        • #5
          What length do you want and I'll make you one if you want
          Humble owner of 7 Eddie Gold Stars and Ex - member of Mk Heli Club
          sigpic

          Comment


          • #6
            Thanks Waveydavey, that's a very kind offer. I'm going to try soldier it myself and see how it turns out. If it goes really wrong you might be hearing from me

            Originally posted by waveydavey View Post
            What length do you want and I'll make you one if you want
            Paz

            Goblin Black Nitro
            Goblin 380
            Oxy 2
            Vcontrol

            Leicester Heli Flyers Club

            Comment


            • #7

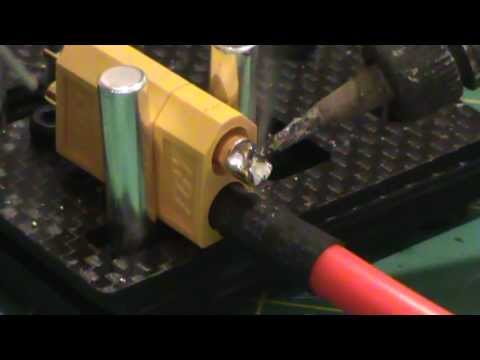

              Let me know, in the meantime take a look at this XT60 sodering video

              Humble owner of 7 Eddie Gold Stars and Ex - member of Mk Heli Club
              sigpic

              Comment
