    DFC Head dampers VS head sleeve

    Guys,

    I noticed my head seemed to be getting a bit loose, so I thought I'd replace the dampers and links (Maybe 200 flights since new now)

    Looking at it though the dampers actually look fairly ok, but the sleeve in the middle of the head is very elongated / worn.

    Is it supposed to look like this? I should imagine yes if your talking a normal head. but on something that is supposed to have 0 damping, Id say no.

    If so, how do i get it out to replace it? Ive tried pushing it and it wont budge!?

    pics incoming.
    NONE OF THE BELOW HELI'S ARE OWNED BY ME ANY MORE
    TT Raptor G4 + Vbar     | MCPX V1 + HP05 Brushless & All the upgrades | 130x Stock | Henseleit TDR 2013 +Vbar | 450L DOMINATOR 6S + Mini Kbar | Logo 550SX +Vbar Mini
    Proud wearer of the EGS award!

    Tags: None
  • #2
    Click image for larger version Name: ImageUploadedByTapatalk1392146601.728044.jpg Views: 1 Size: 108.6 KB ID: 1881921

    Click image for larger version Name: ImageUploadedByTapatalk1392146619.360196.jpg Views: 1 Size: 111.1 KB ID: 1881922
    NONE OF THE BELOW HELI'S ARE OWNED BY ME ANY MORE
    TT Raptor G4 + Vbar     | MCPX V1 + HP05 Brushless & All the upgrades | 130x Stock | Henseleit TDR 2013 +Vbar | 450L DOMINATOR 6S + Mini Kbar | Logo 550SX +Vbar Mini
    Proud wearer of the EGS award!

    Comment

    • #3
      I always replace the dampeners and the sleeve (should be perfectly round) every time on my 550e (haven't flown my 700e enough yet to require it, but for sure I will replace the sleeve and dampeners).
      Paul ​


      Blade 130x - Smallest heli, biggest PITA.       Syma SO33G - Co-Axial ('nuff said, sorry)
      Align Trex 550e DFC v3 - Mini vBar v5.3.4 PRO - Kontronik Jive 100+ LV - 5000mAh 6S (Murderous devil spawned attack drone!) Broken....again!!
      Align Trex 700e HV DFC Super Combo - Mini vBar v5.3.4 PRO - Castle ICE2 120HV v3.56.17       - Gryphon Quasar BEC - TM1000 Telemetry - 5000mAh 12S
      DX7s .
      PL8 v3.31
      RF 7 & Exp' Pack 8. v7.00.036.
      Phoenix v5.0.p
      Porscheboy on Google+ . Porscheboy on YouTool (Only if you're really bored ).

      South Hants Helis (SHH) on Facebook       Proud to have been there since the start.

      Artificial intelligence is no match for natural stupidity.

      Comment

      • #4
        Is there a sleeve in there ? Looks like the hub is worn or maybe I should get glasses
        Seaking

        Comment

        • #5
          The dark oval shaped bit in the second pic is the sleeve (at least on my 550e it is)
          Paul ​


          Blade 130x - Smallest heli, biggest PITA.           Syma SO33G - Co-Axial ('nuff said, sorry)
          Align Trex 550e DFC v3 - Mini vBar v5.3.4 PRO - Kontronik Jive 100+ LV - 5000mAh 6S (Murderous devil spawned attack drone!) Broken....again!!
          Align Trex 700e HV DFC Super Combo - Mini vBar v5.3.4 PRO - Castle ICE2 120HV v3.56.17           - Gryphon Quasar BEC - TM1000 Telemetry - 5000mAh 12S
          DX7s .
          PL8 v3.31
          RF 7 & Exp' Pack 8. v7.00.036.
          Phoenix v5.0.p
          Porscheboy on Google+ . Porscheboy on YouTool (Only if you're really bored ).

          South Hants Helis (SHH) on Facebook           Proud to have been there since the start.

          Artificial intelligence is no match for natural stupidity.

          Comment

          • #6

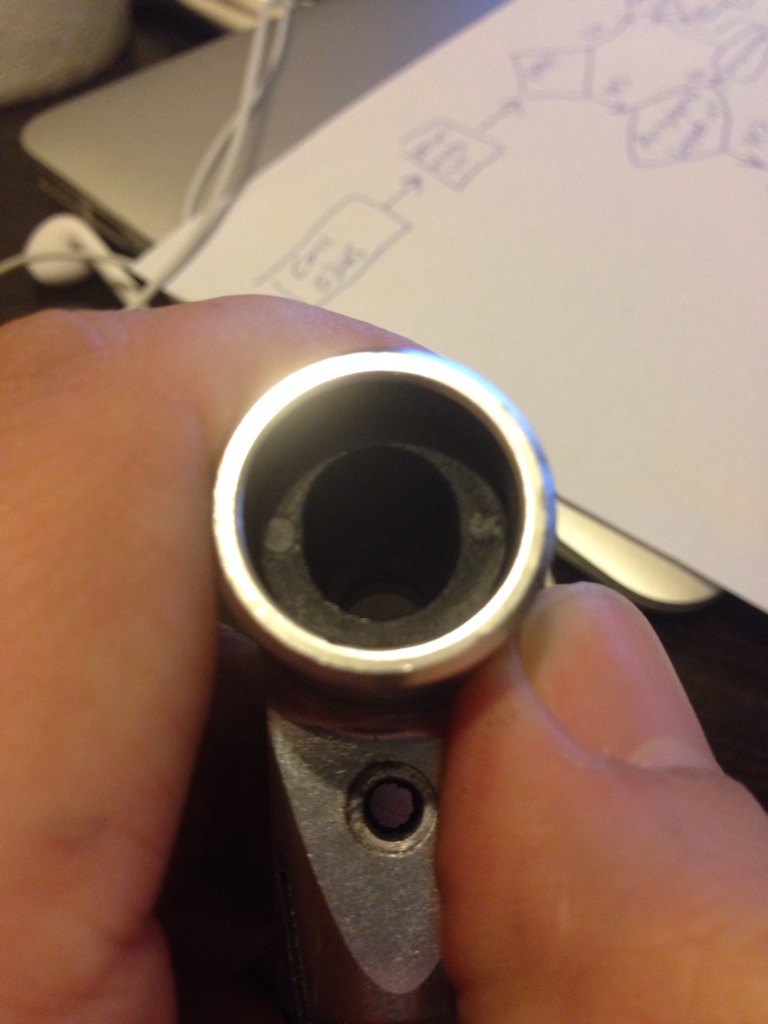

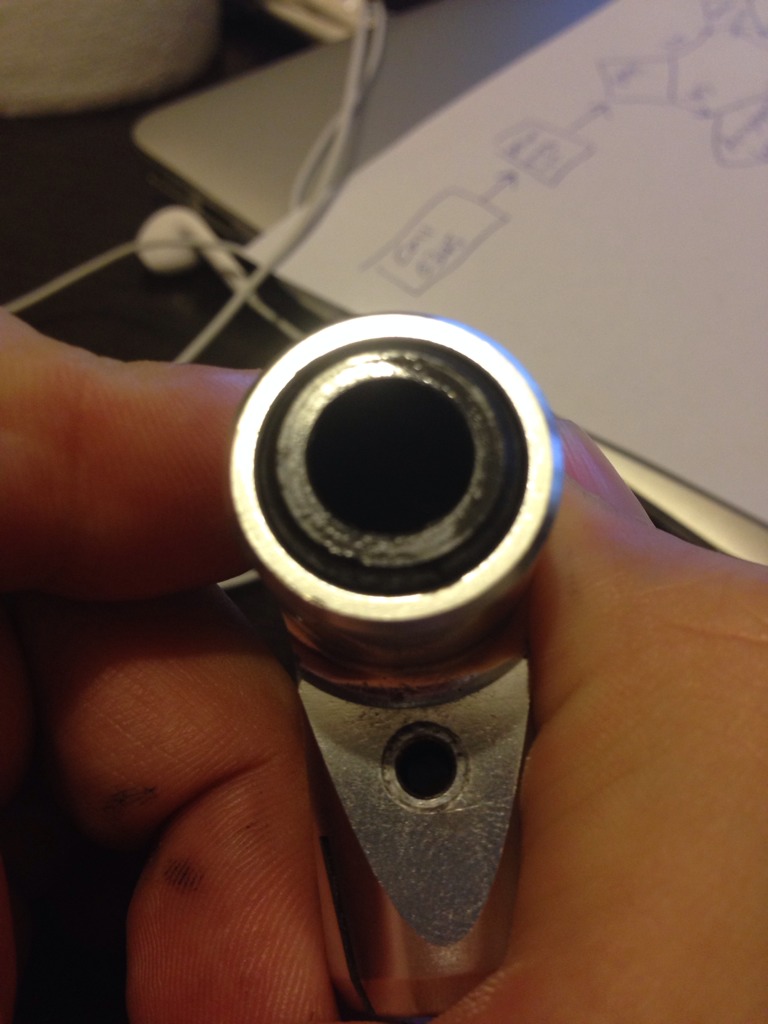

            Top pic is with the damper, one below is without. Looks to me like it's made of plastic and is worn not round - can't work out how to get it out though?!
            NONE OF THE BELOW HELI'S ARE OWNED BY ME ANY MORE
            TT Raptor G4 + Vbar             | MCPX V1 + HP05 Brushless & All the upgrades | 130x Stock | Henseleit TDR 2013 +Vbar | 450L DOMINATOR 6S + Mini Kbar | Logo 550SX +Vbar Mini
            Proud wearer of the EGS award!

            Comment

            • #7
              Mine just fall out , they only 1.5mm thick tops I recon , can't thing why yours is stuck ?

              edit , does the 700 actually have a separate sleeve like the smaller Rex's ?
              Last edited by ady; 11-02-2014, 07:59 PM.
              Seaking

              Comment

              • #8
                Ahah, i got them out!

                They only come out from the inside out, so I had to carefully put a screwdriver in and tap them out from the inside outwards.

                Feathering Shaft Sleeve HN7111 Model Helicopters

                Question is now, are they supposed to be round or elongated?! They do kind of look directional (They have locating parts on the back so they can only slot in at a certain angle) but I cant think for the life of me why theyd want a floating spindle with solid dampers...
                NONE OF THE BELOW HELI'S ARE OWNED BY ME ANY MORE
                TT Raptor G4 + Vbar                 | MCPX V1 + HP05 Brushless & All the upgrades | 130x Stock | Henseleit TDR 2013 +Vbar | 450L DOMINATOR 6S + Mini Kbar | Logo 550SX +Vbar Mini
                Proud wearer of the EGS award!

                Comment

                • #9
                  think theyre meant to be like that. when the dfc heads first came out they didn't have pom dampeners so had some dampening properties and when they brought out the pom's they must have forgot the sleeve . Although it probably doesn't matter that its oval as the pom's don't allow any movement anyway
                  Avant mostro 700E
                  Avant mostro 700 Nitro



                  member of :
                  South cheshire heliaddicts

                  Comment

                  • #10
                    Hi I remember them being oval from top to bottom to allow movement up and down only.

                    As Tony says above
                    Goblin 700 comp 3 blade Kyle stacey head and tail, 160 scorpion esc , ultimate motor,MKS. Vbar NEO
                    Trex 700 DFC Dominator motor, scorpion . MKS. Vbar NEO
                    iCharger 4010 , PL8 charger,
                    Vbar Control and a case of lithium plus an eu10i genny !!!

                    Comment

                    • #11
                      Would they not be the sacrificial wear part, rather than the head assembly?
