    Well,

    Went flying just a few mins ago, and tried tuning the engine correctly again.. No luck, and i notice a screw it loose where the engine mount is, so i take the muffler off only to find the damn thing has melted into the muffler slightly deep but not breeched it, so i tighten that up, then i bloody noticed the ****ing Nipple screw is gone, so thats gonna help a bunch with tuning, then aload of crap gets on the muffler and burns it in,

    Now i flying and then The BLOODY MUFFLER HANGS OFF! and im loosing some power so i hit throttle hold and glide it down... so ive lost a muffler mount screw.. an burnt my finger

    Not Bleeding happy, but got some good digi cam shots non the less,

    So, gonna order a new muffler possibly i do have a spare muffler mount screws, but not the nipple screw underneath the muffler.


    Morale is? use locktight.

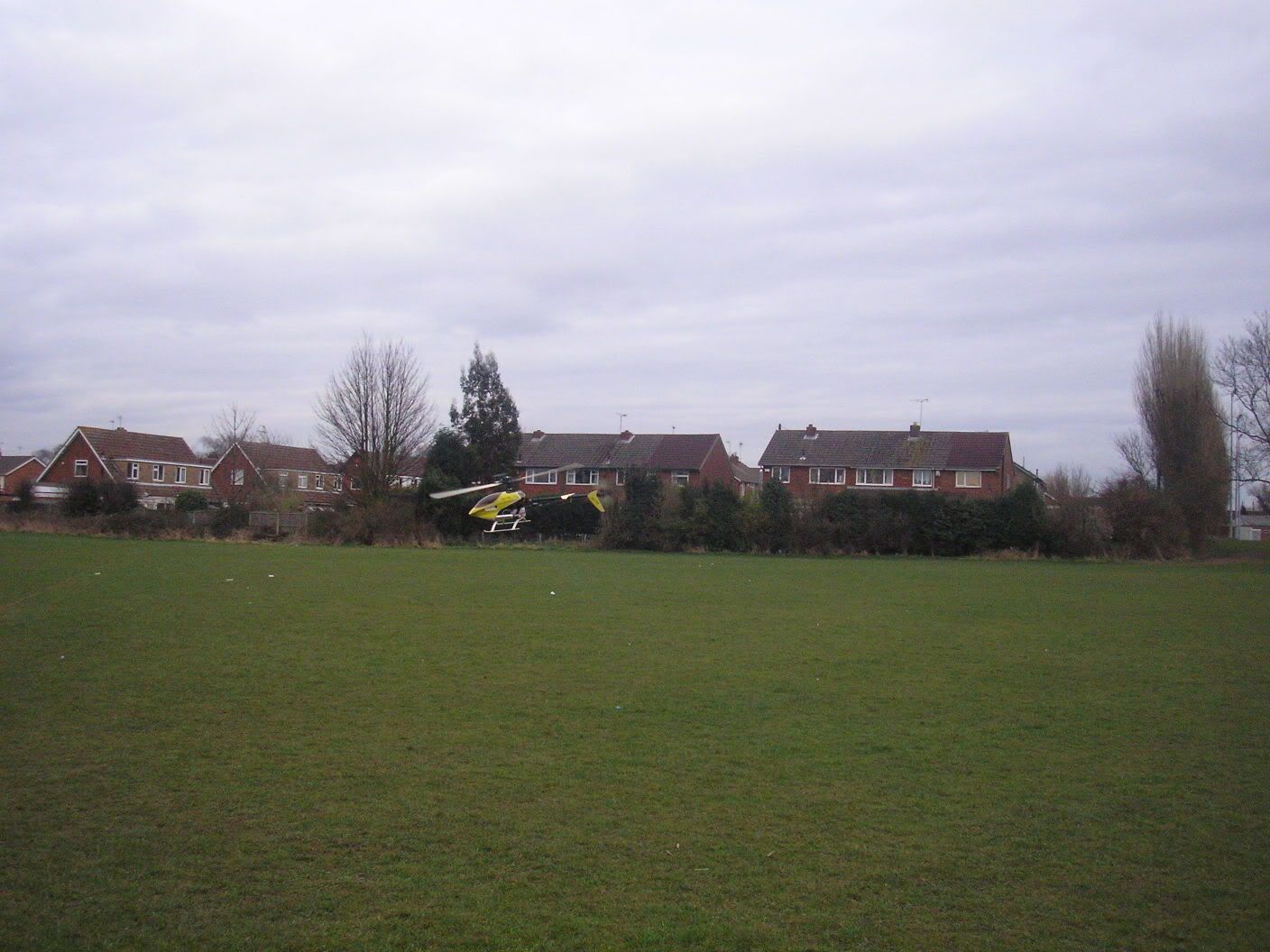

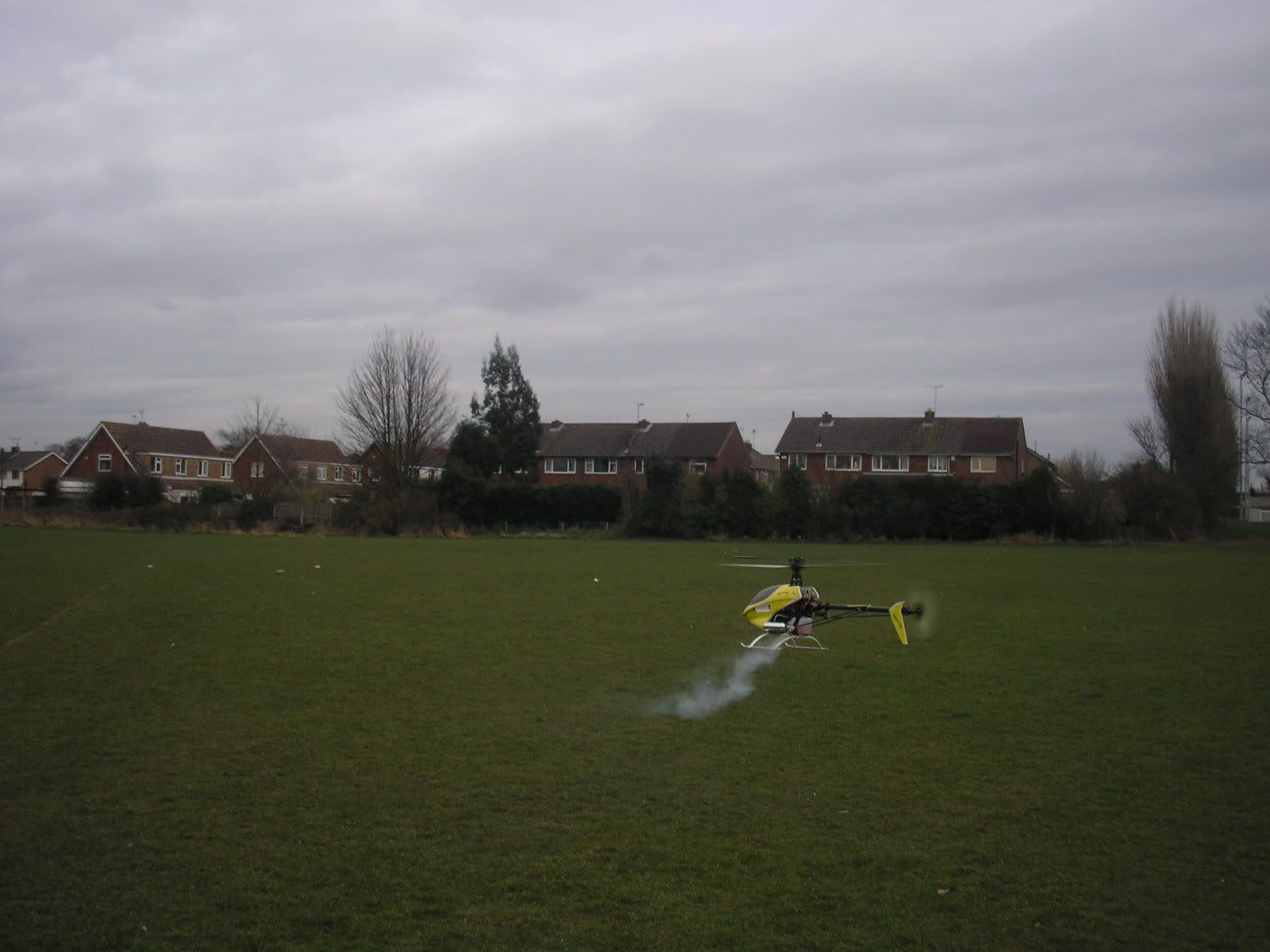

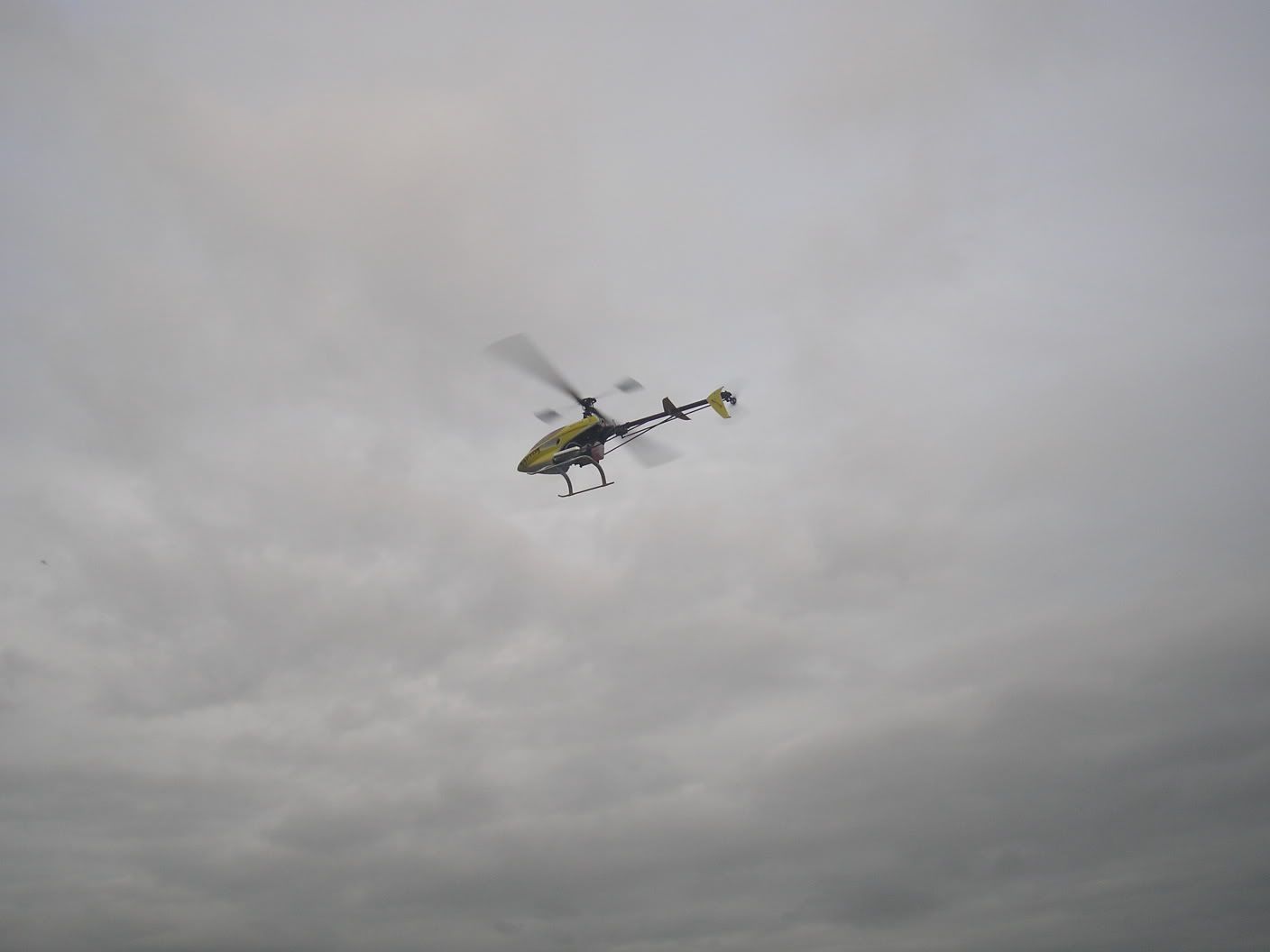

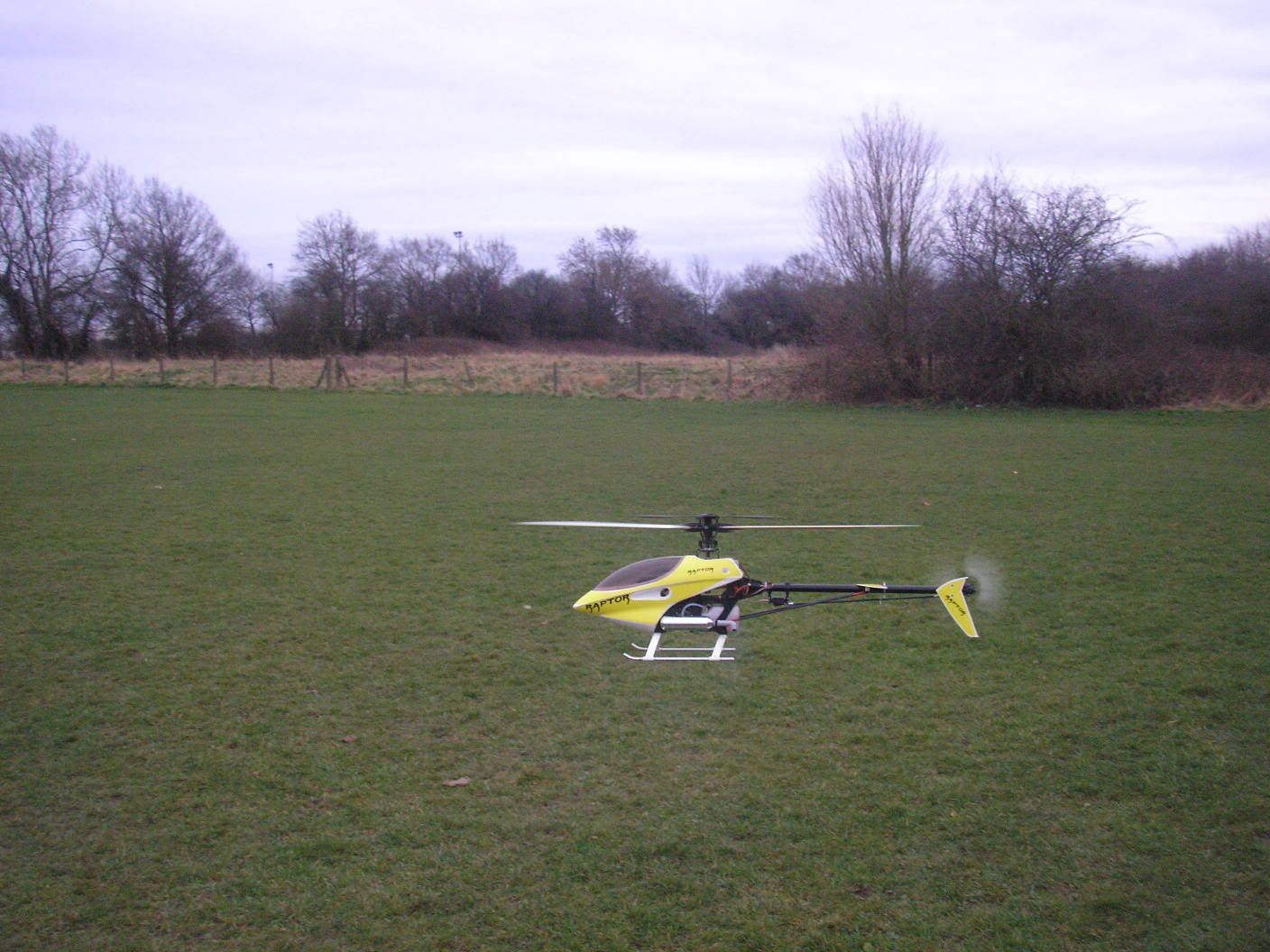

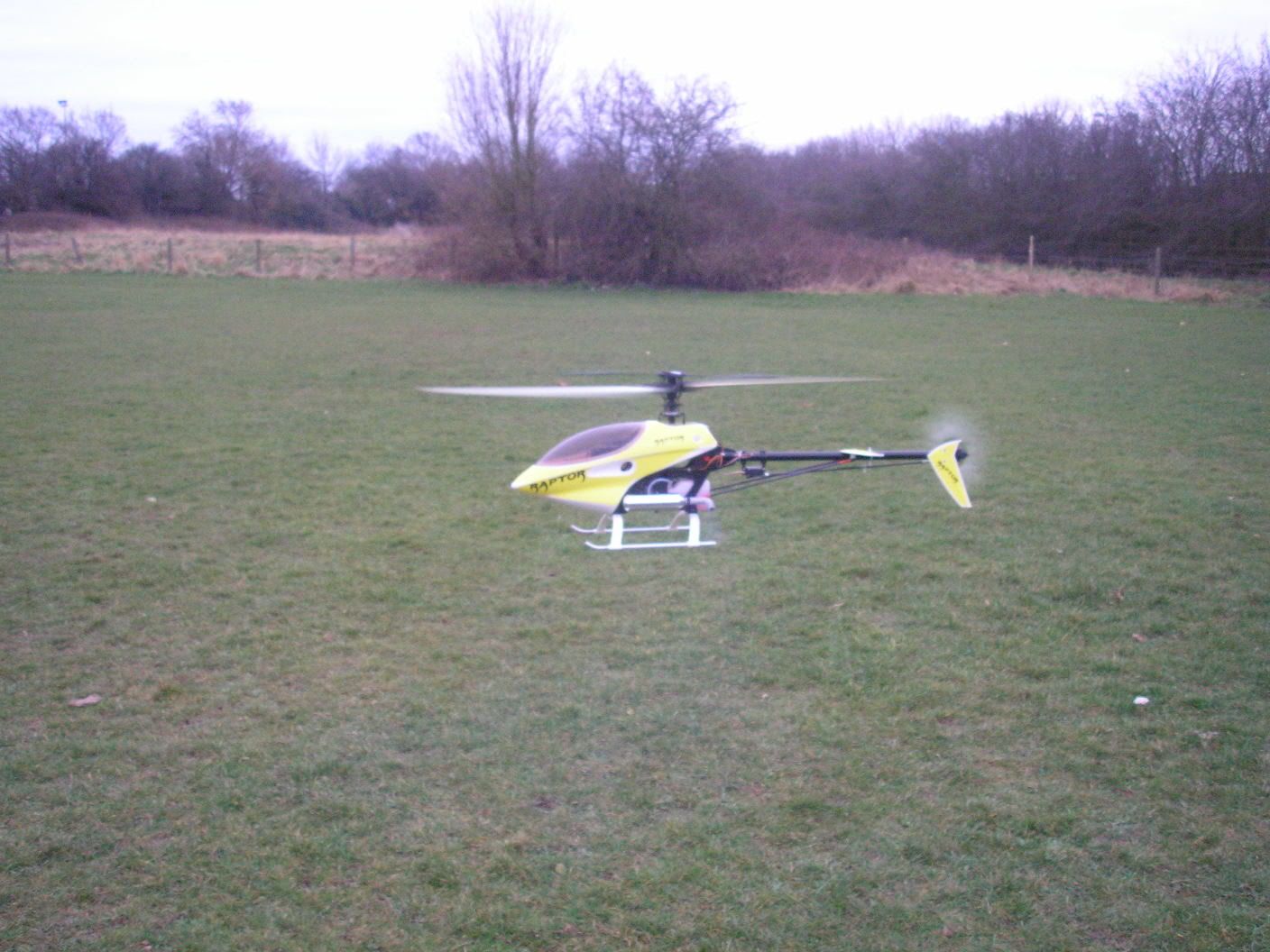

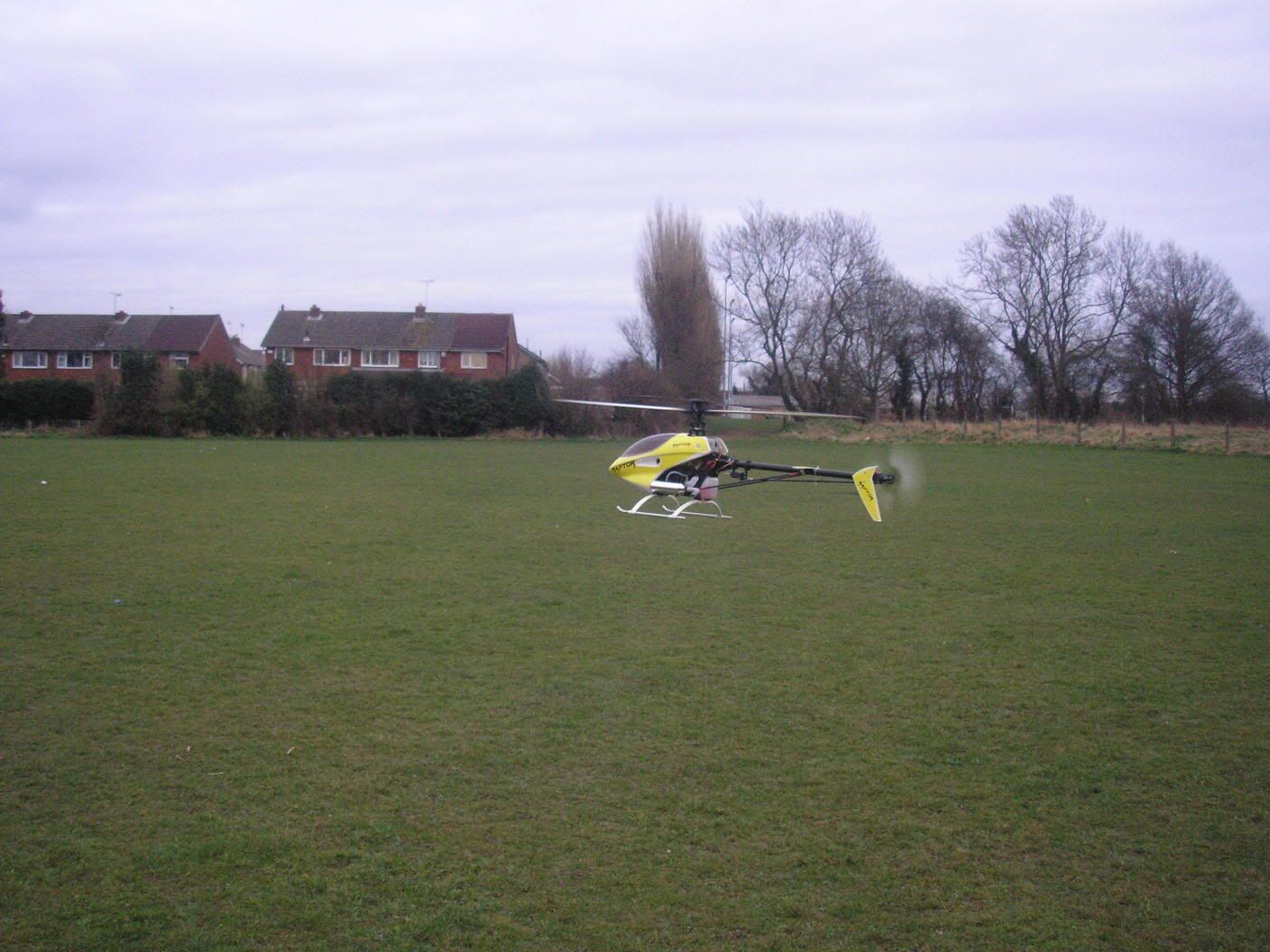

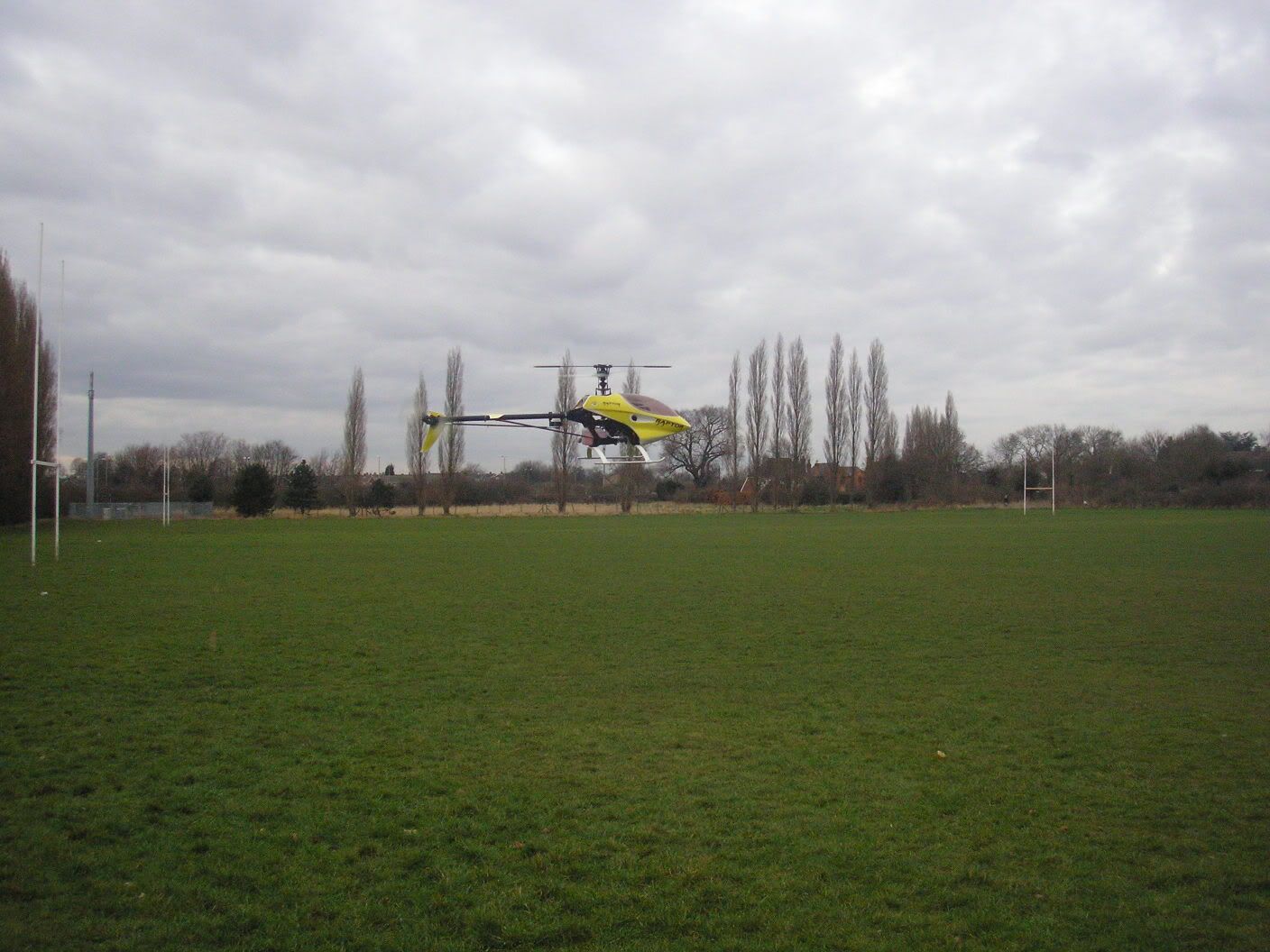

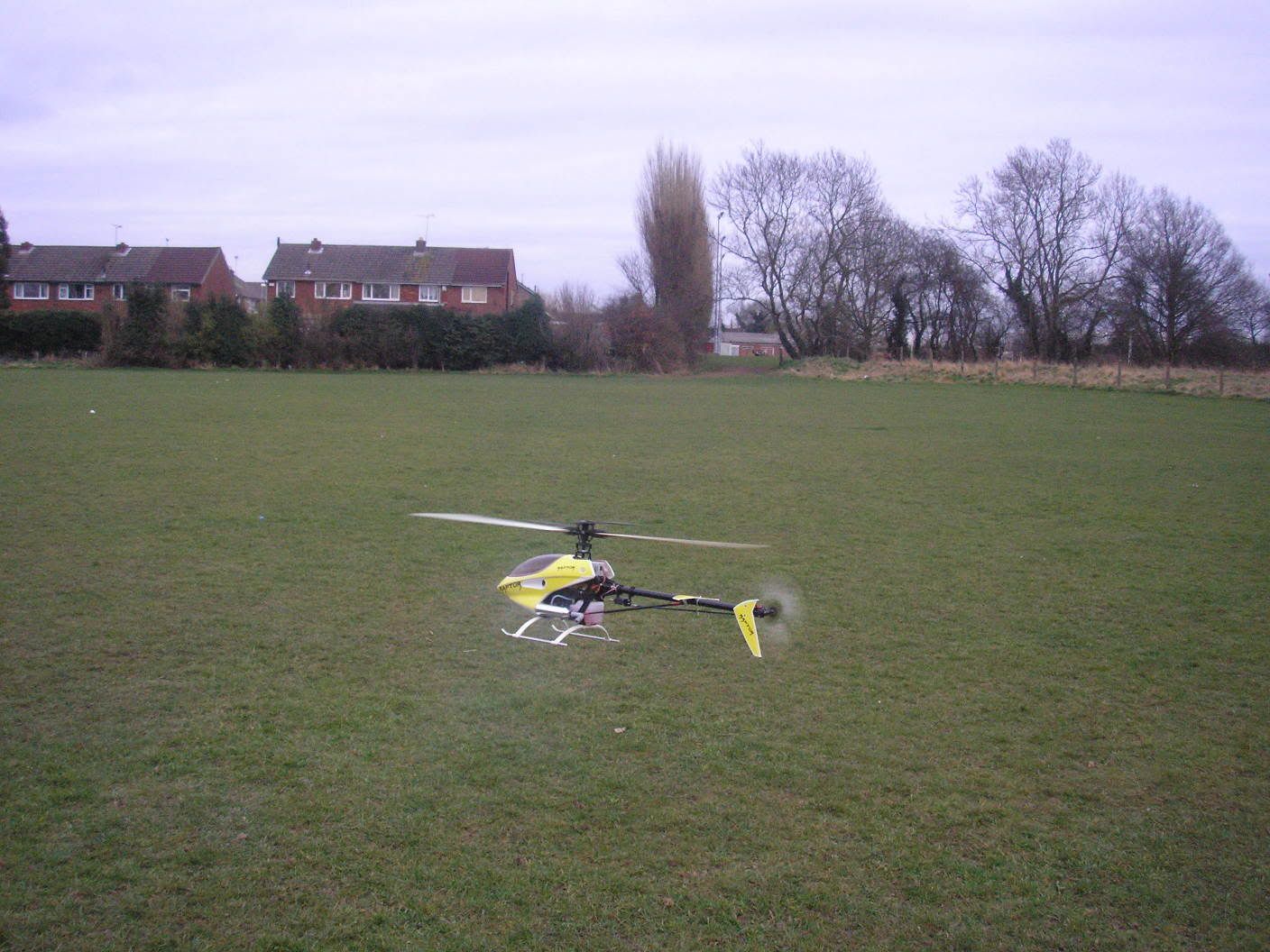

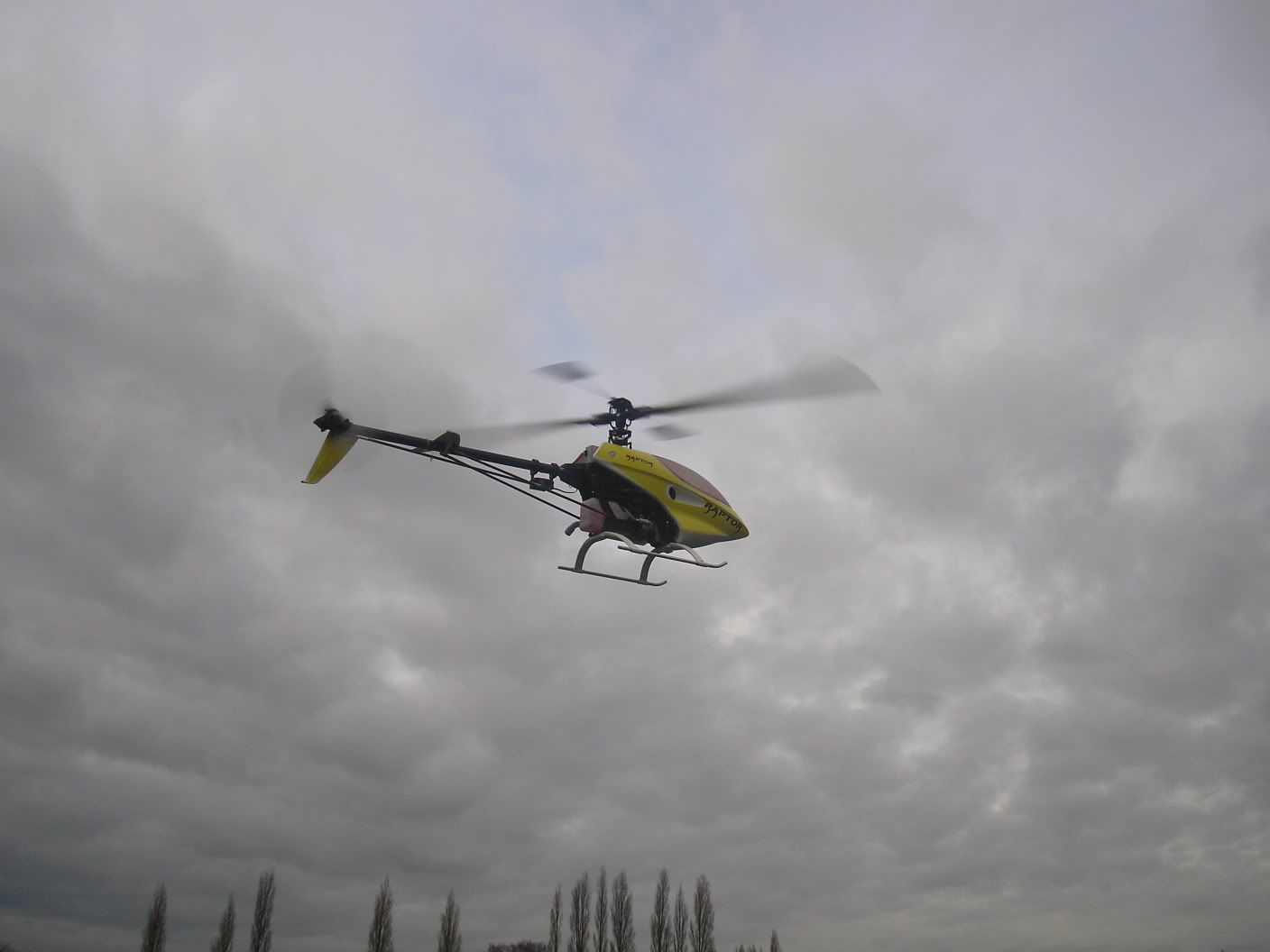

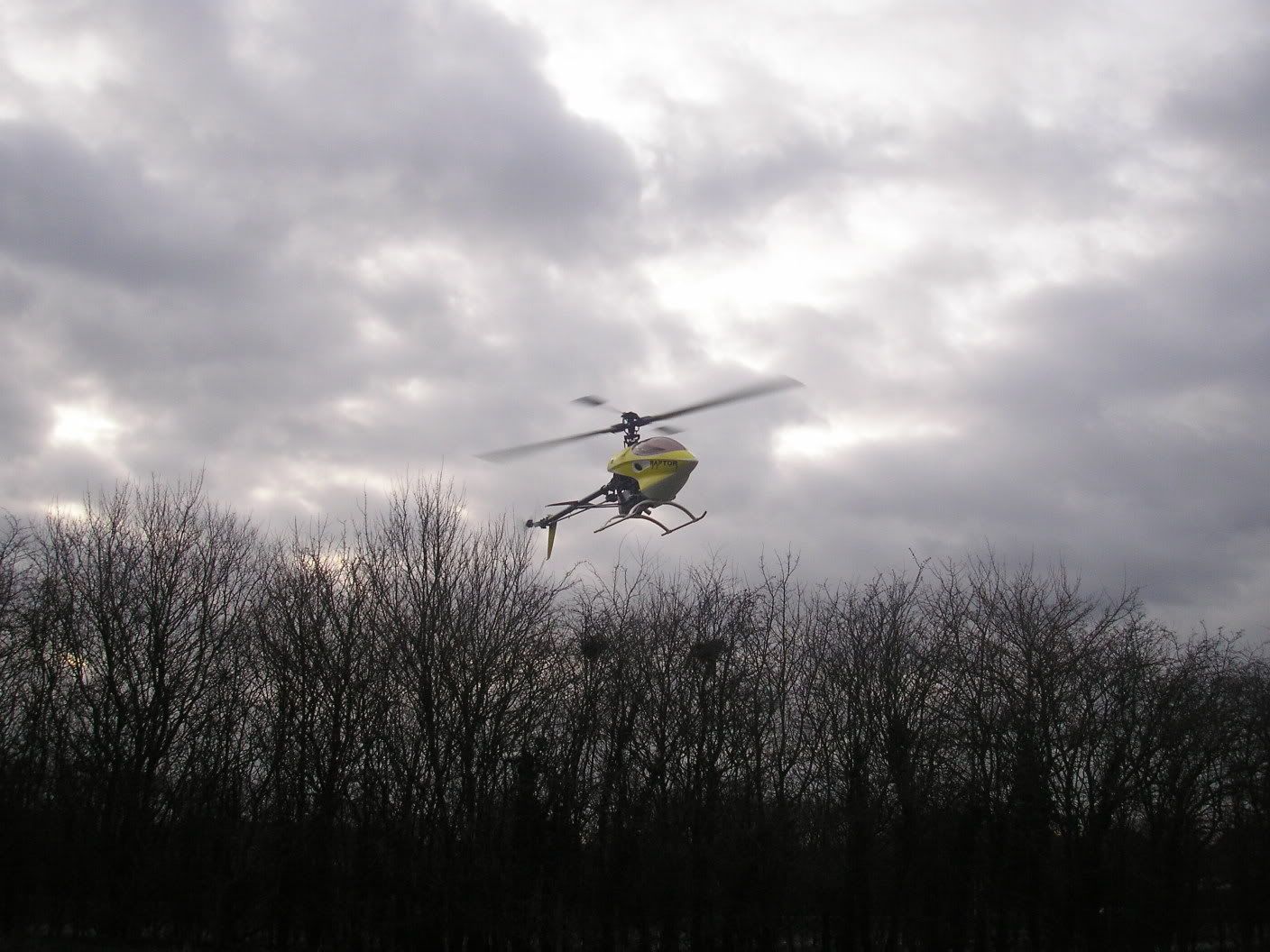

    Pictures










































    Last edited by callum; 02-03-2009, 06:41 PM.
    "Anger and Frustration bring the best out of my flying ability.. because generally I don't give a shit either if the machine hit's the deck or stay's in the air - both will accomplish satisfaction, but most of all it exerts the feeling of flying conservatively. - Callum"

    www.callumheli.co.uk


  • #2
    post your good pics mate
    thanks best regards liam
    Taort 450 pro v2 fbl
    mz18

    proud owner of 2 egs

    sponsored by :

    KBDD International Pilot







    Comment


    • #3
      Uploaded Pics check first post
      "Anger and Frustration bring the best out of my flying ability.. because generally I don't give a shit either if the machine hit's the deck or stay's in the air - both will accomplish satisfaction, but most of all it exerts the feeling of flying conservatively. - Callum"

      www.callumheli.co.uk

      Comment


      • #4
        good pics cal and use epoxy instead of loctite ;0)
        cheers
        matty

        Spektrum DX7s
        DJI F450 naza/gps Trex 500

        http://www.facebook.com/groups/186596271481434/

        Comment


        • #5
          Thanks

          Dont have any epoxy but ile get some, i think ile get rid of the engine sometime soon,

          its running way to lean and each time i go to tune it, it doesnt make any difference , and the muffler is like red hot. lol

          ile also photoshop some of the pics
          Last edited by callum; 02-03-2009, 07:57 PM.
          "Anger and Frustration bring the best out of my flying ability.. because generally I don't give a shit either if the machine hit's the deck or stay's in the air - both will accomplish satisfaction, but most of all it exerts the feeling of flying conservatively. - Callum"

          www.callumheli.co.uk

          Comment


          • #6
            engine might be ok callum. it could be a number of reasons why it wont tune and keeps running lean. for starters - the exhaust coming loose and not sealing and the nipple on it will make it run lean. might be pulling air into the fuel system/tank/fuel lines. back plate on the engine might be loose and not sealing. id check all these things b4 looking for a new engine or exhaust. make sure the glow plug is sealing aswell.

            dont use the little exhaust gasket - use a small layer of expoxy instead and get some longer exhaust bolts from fastlads and put nuts on the other side with a locking nut on there too to stop it coming loose. get a new nipple for the exhaust and epoxy that in aswell.

            you need to stop this air being drawn into the system or you will never get it tuned and it will always run lean.

            cheers

            matty
            Last edited by mattydred; 03-03-2009, 12:02 PM.
            cheers
            matty

            Spektrum DX7s
            DJI F450 naza/gps Trex 500

            http://www.facebook.com/groups/186596271481434/

            Comment


            • #7
              Zimmerman and TT pipes are the only ones that will fit without some form of alteration to the standard canopy. ie cutting it out a little.

              personnally I didnt like the way either of them tunned the simmerman kept going off, and the TT just never rally sang at all. I ended up getting one of the 3d raptor canopys, which any muffler will fit without the need for cutting/modifying.

              but then if you either go for different canopy or alteration(which can be done very neatly) then the world of mp's or hatoris open up.
              All the best
              Tony.
