Tarot ZYX CopterX CX-3X1000 FBL Installation

[spudly]

I have got a CopterX CX-3X1000 FBL uint that I want to fit ti the 250. Has anyone fitted this unit or the Tarot ZYX to a 250? I am seeking Installation guidance and would like to know where other have located it.
Photos would be good.

[muscleflex]

there's lot of people on rcgroups with 250 and ZYX

[Mikej]

Here is mine

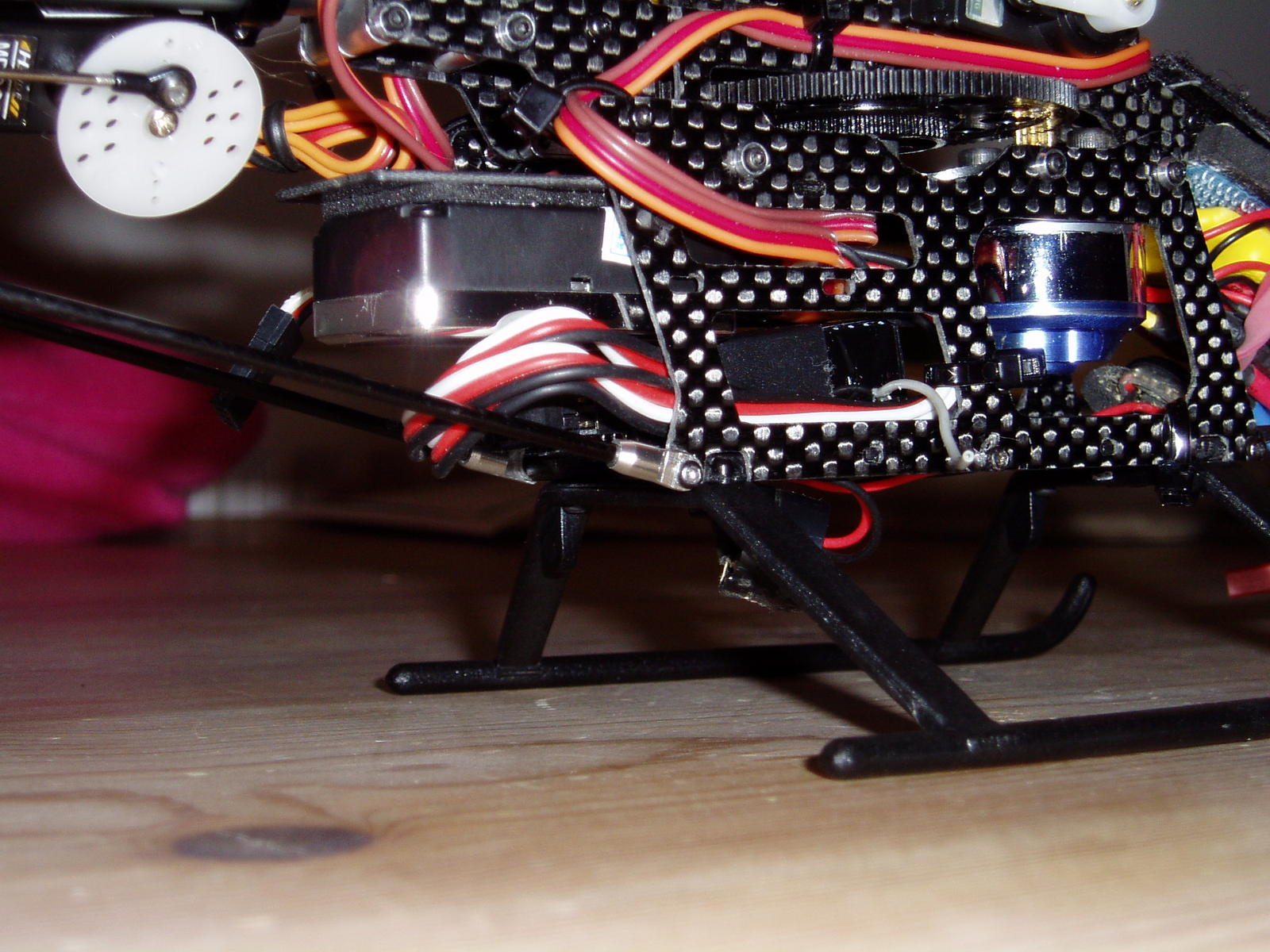

Gyro tray at top, ZYX taped underneath that, AR6100 on bottom plate, it's tight but do-able

[spudly]

Thanks for the response. I was hoping I could stick mine underneath like you have. I have the CX3-3x1000 but guess they are very similar and I could do the same. The instructions don't show it being mounted underneath which was why I asked.
What does your fly like Mikej?
I have another Trex 250 SE which currently has 3G and if its like that I will be happy.

[Mikej]

I have an 3X1000 as well - 3x1000 13.23mm tall, the Tarot ZYX shown = 13.13mm tall (both according to my calipers) so not much in it - when my camera batts charge up I will post another option ...

[Mikej]

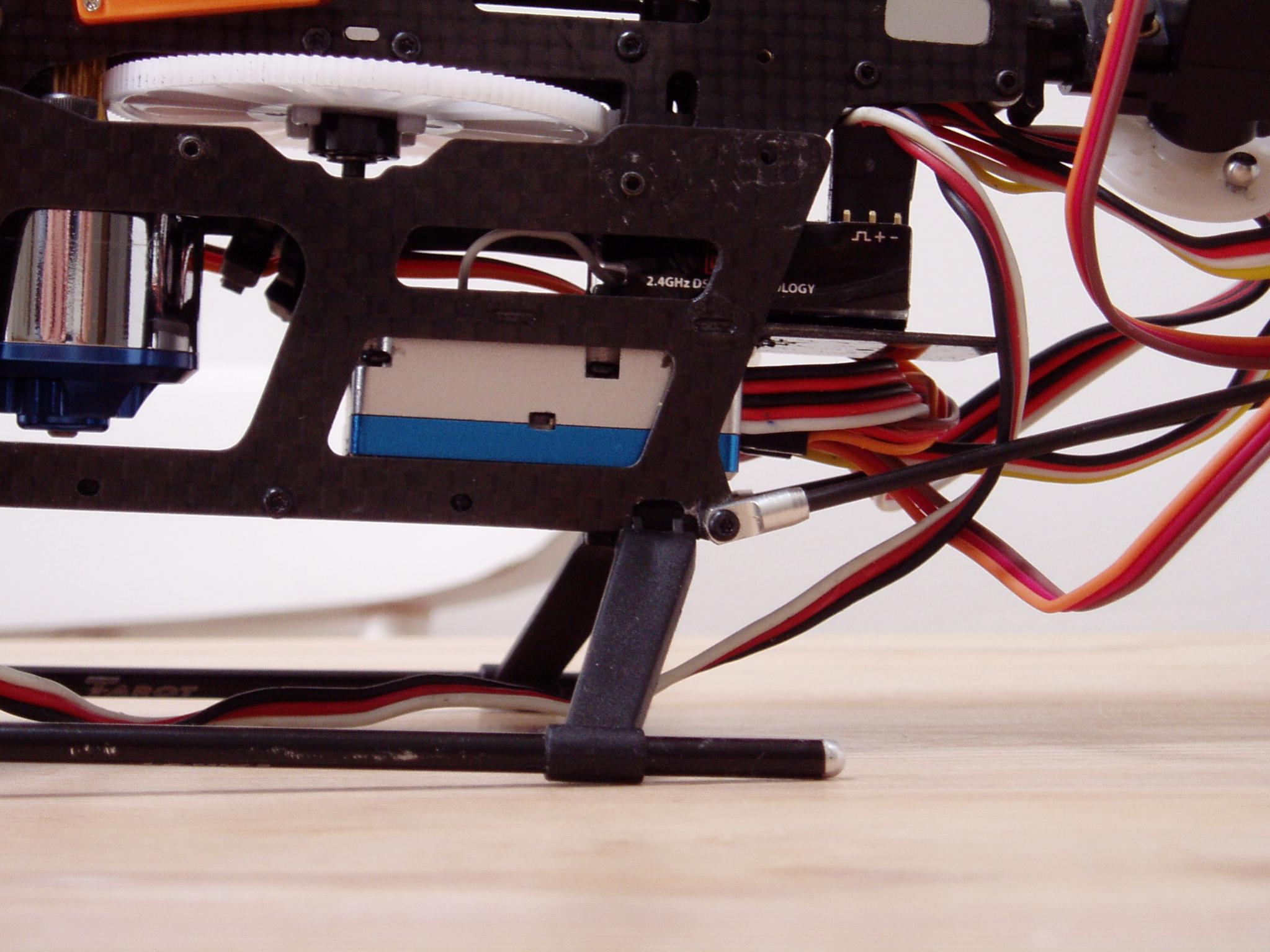

Here's another option - this is going to be TT soon ...

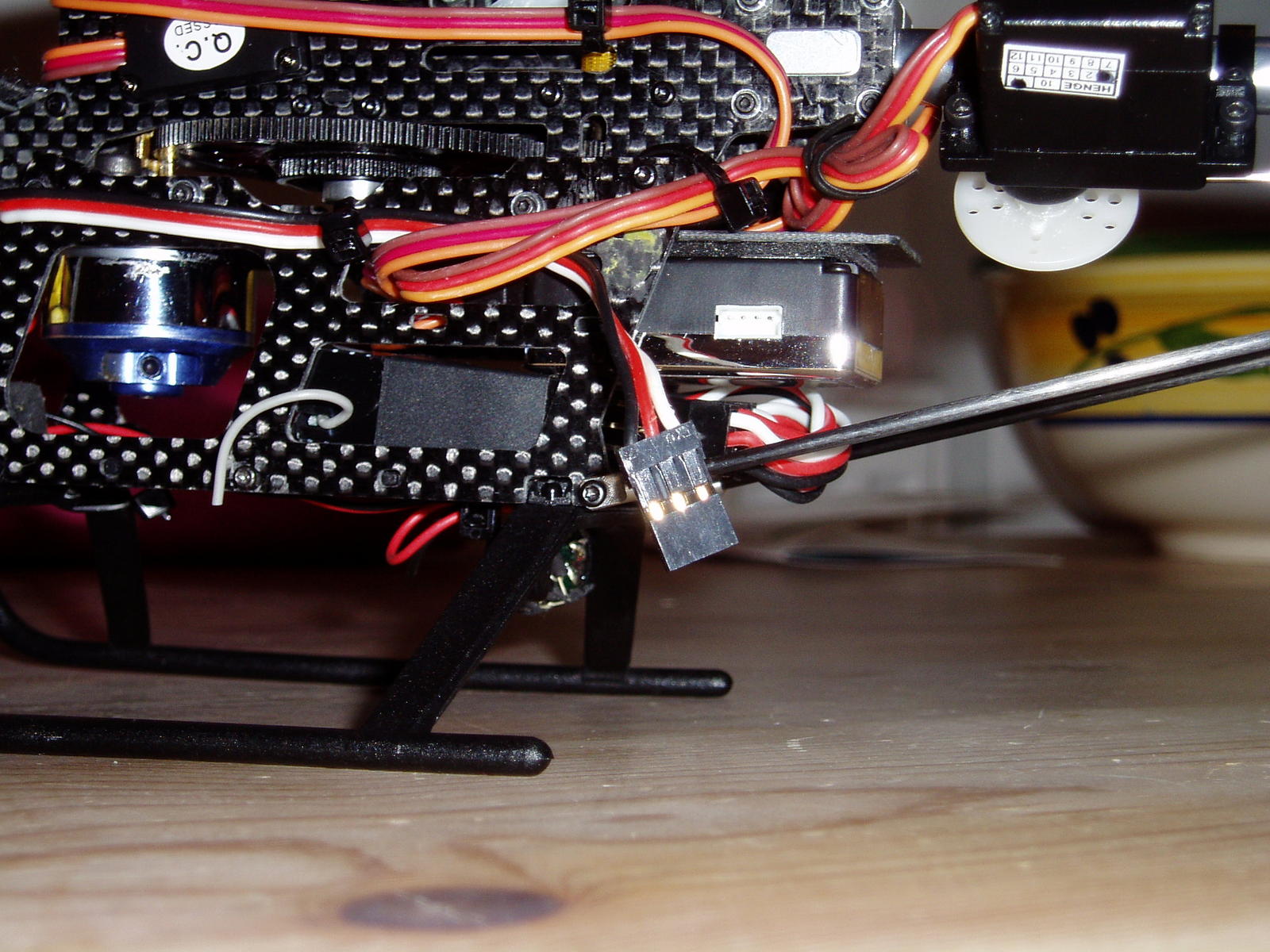

Gyro tray in middle - 3X1000 is upside down
